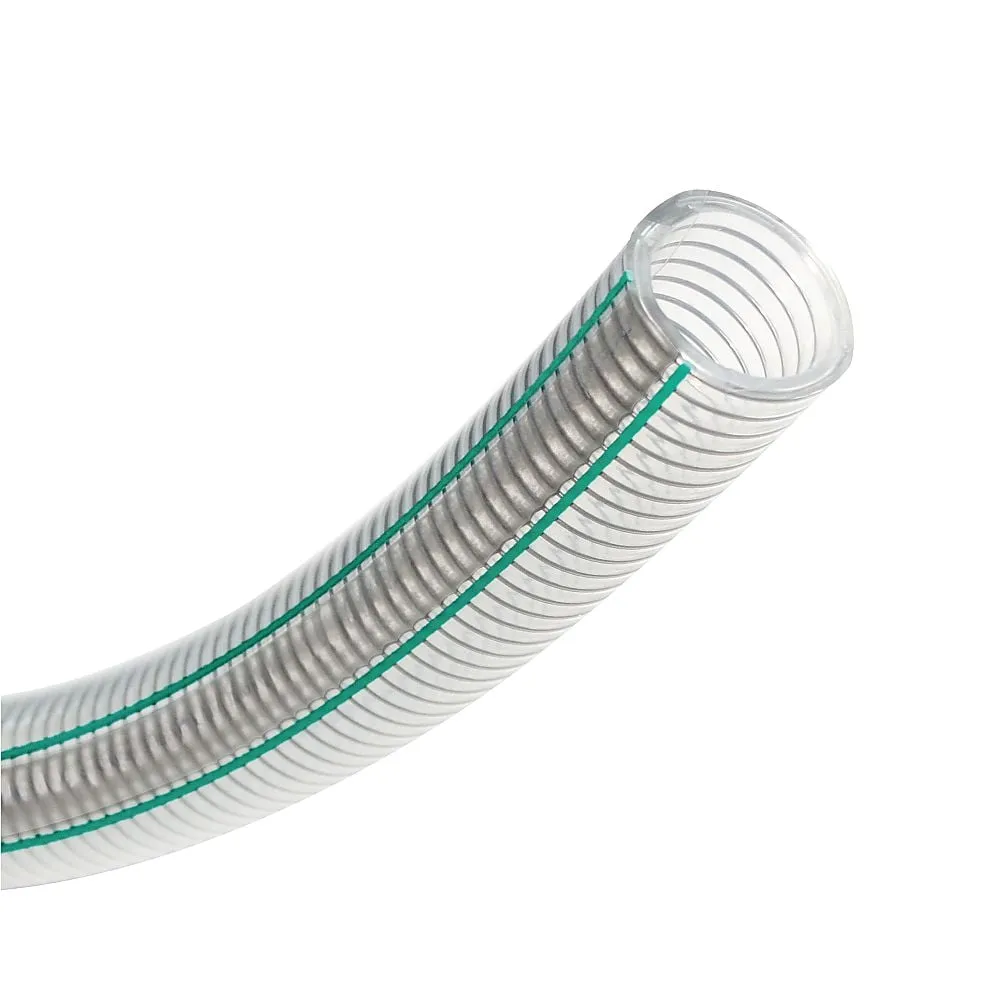

65-0875-21 Toyofusso S Hose for transporting chemicals, solvents, cosmetics, food, oil, etc. FFS-15-1
Product Description
Product Model: 65-0875-21Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0875-21
Product Brand: TOYOX CO., LTD.
Features
- Fluorine hose for transport and suction of chemicals, solvents, cosmetics, oils, food, etc. • "Chemical resistance": Fluorine hose with excellent chemical and solvent resistance, made of inner tube 4 fluorinated resin • "Cleaning efficiency": Excellent water repellency, non-stick and hardly leaves residue • "Low elution": Difficult to affect fluid due to low elution • "B***ing shape retention": Spring hose suitable for suction (vacuum) transport with small b*** radius and shape retention.
- Regulations: Food Sanitation Act compliant, FDA registered, RoHS2 compliant (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 15 x 22
- Pressure (Mpa): -0.1 to 0.5 (23 °C), -0.1 to 0.25 (80 °C)
- Operating temperature range: -20 to 80 °C
- Length: 1 m
- Material: Body/Tetrafluorinated Fluorine Plastic (Modified ETFE), Reinforcing Material/Polyurethane Plastic
- Minimum b***ing radius: 55 mm
