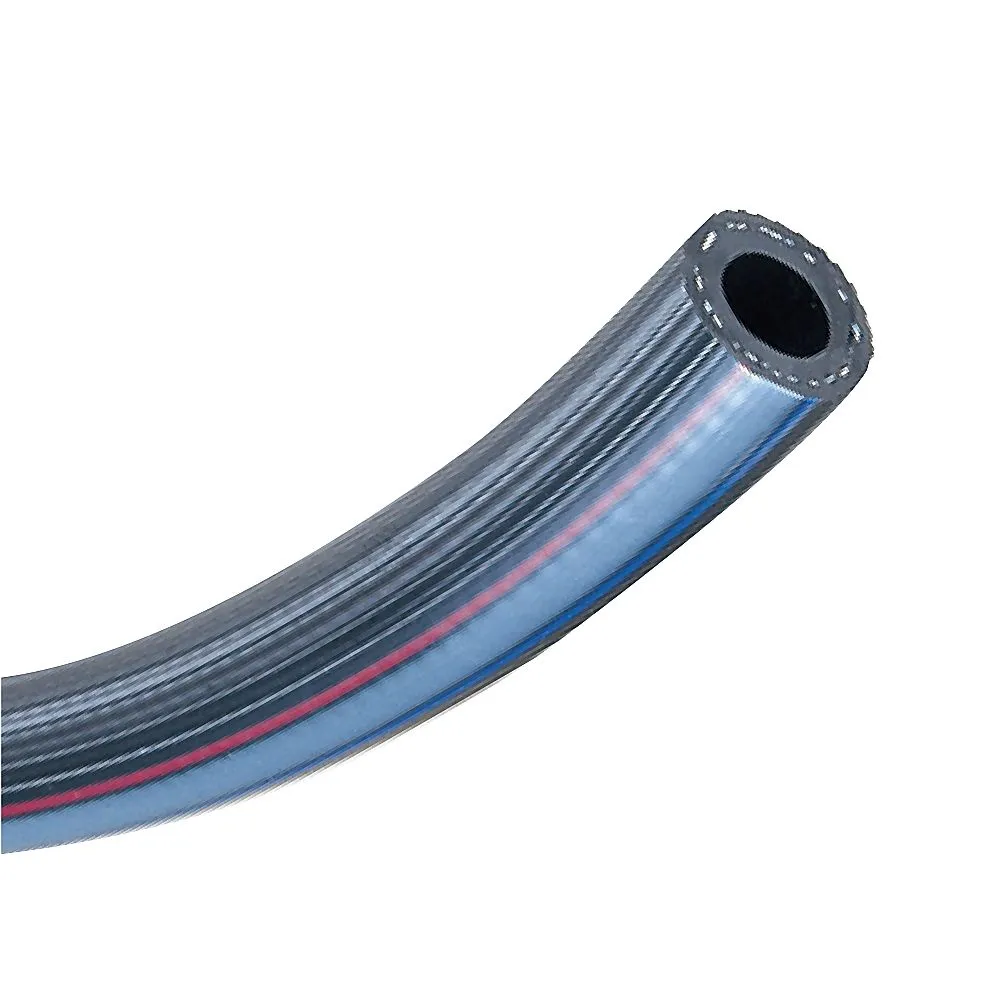

65-0870-10 Arrow Hose for Factory Equipment Air Piping A-9-1
Product Description
Product Model: 65-0870-10Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0870-10
Product Brand: TOYOX CO., LTD.
Features
- Pressure resistant blade hose for air pressure feeding made of soft vinyl chloride.
- It is a pressure resistant blade hose that is flexible, easy to b***, and hard to break, so it can be ***d for piping in narrow places. It is suitable for fixed piping in factories and air piping in facilities.
- The hoses come in two colors, black and blue, and you can identify the piping.
- Compliance with RoHS2 revised regulations (as of October 2021).
Spec
- Inner diameter x Outer diameter (mm): 9.5 x 16.5
- Pressure (Mpa): 0 to 1.0
- Operating temperature range: -5 °C to 60 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 45 mm
- Hose Color: Black
