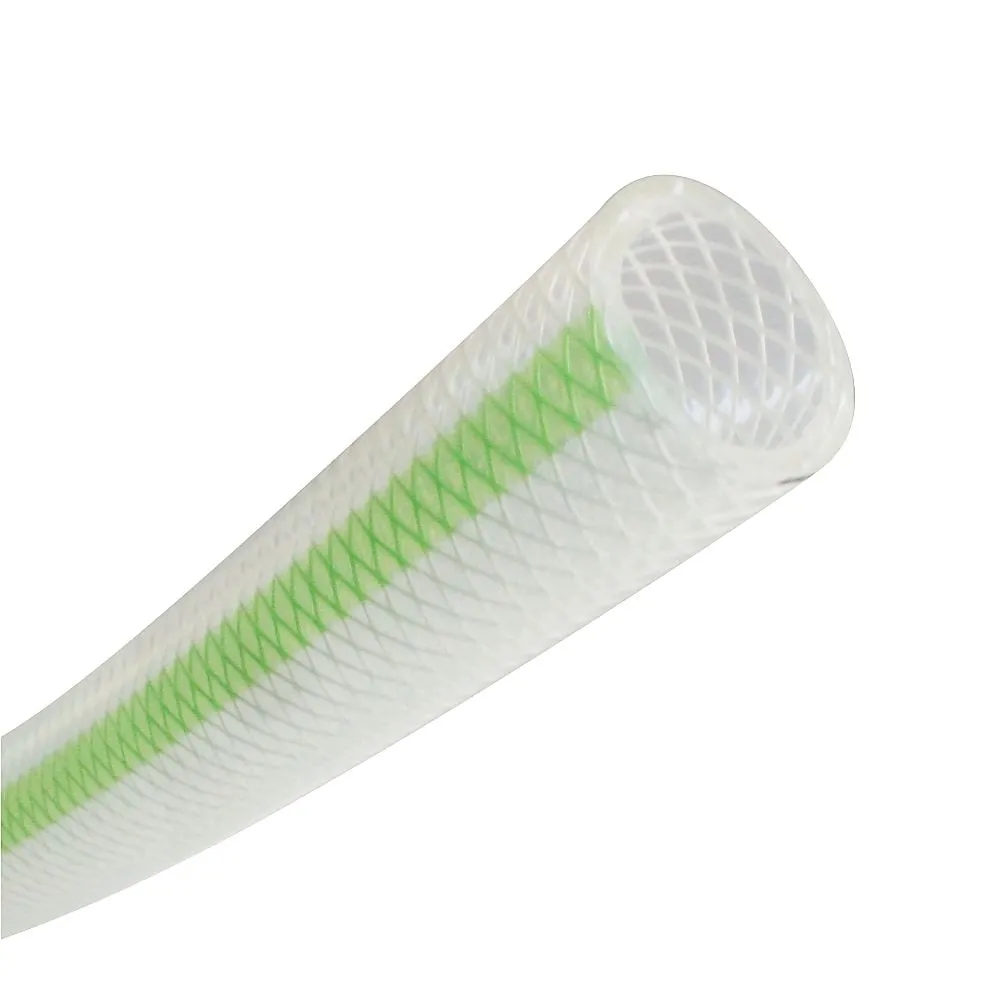

65-0869-23 Toyofusso Soft Hose for transport of cosmetics, Food, Alcoholic beverages, Perfumes, etc. FFY-15-1
Product Description
Product Model: 65-0869-23Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0869-23
Product Brand: TOYOX CO., LTD.
Features
- Fluorine hose for transport of cosmetics, fats and oils, food, liquor, perfumes, etc.
- "High flexibility": About 30% softer and more flexible than conventional fluorine hose (product ratio of manufacturers)
- "Chemical resistance": Inner pipe 4 Fluoride based fluororesin with excellent chemical resistance
- "Cleaning efficiency": Excellent water repellency, non-stick and does not leave residue
- "Low dissolution": Difficult to affect fluid due to low dissolution
- "Legal compliance": Food Sanitation Act compliant, FDA registered, RoHS2 compliant (as of October 2021)
- Pressure resistant blade hose
Spec
- Inner diameter x Outer diameter (mm): 15 x 22
- Pressure (Mpa): 0 to 1.0 (23 °C), 0 to 0.5 (70 °C)
- Operating temperature range: -5 °C to 70 °C
- Length: 1 m
- Material: Body/Tetrafluorine Fluorine Plastic, Reinforcement/Polyester Yarn
- Minimum b***ing radius: 105 mm
