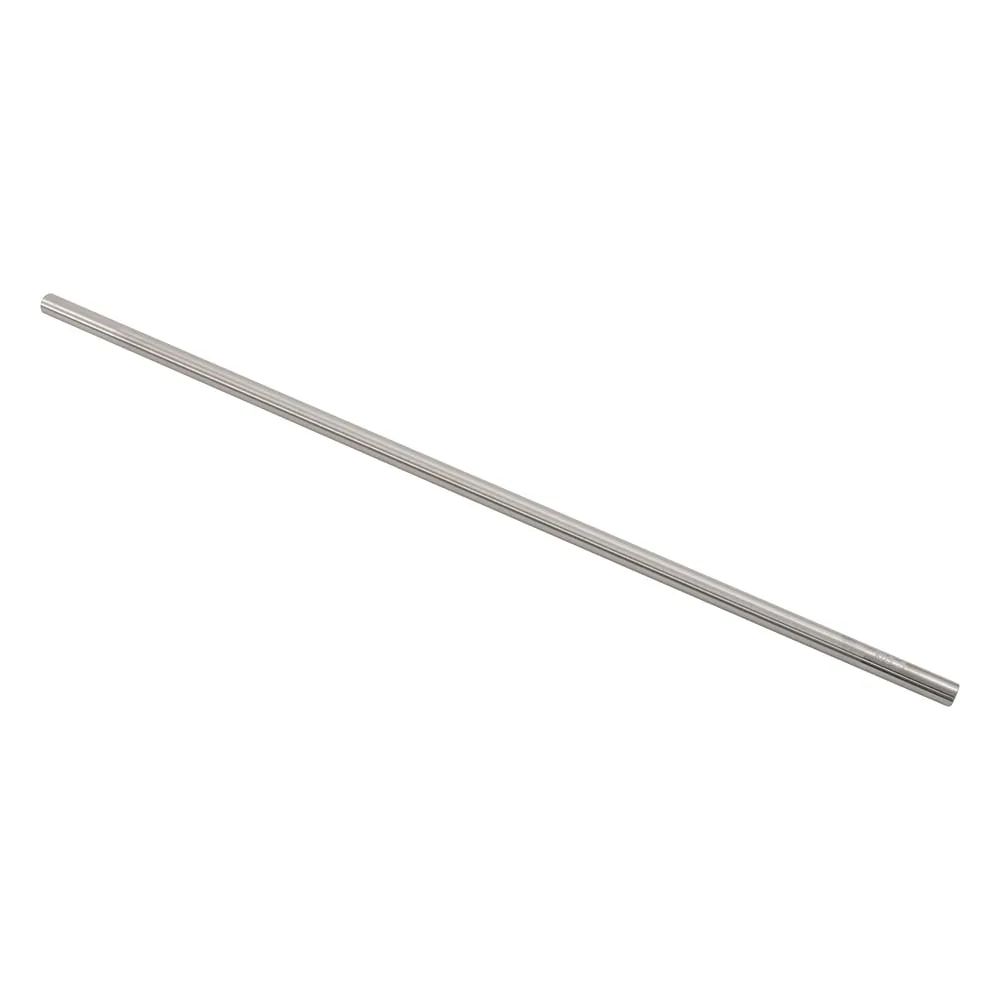

4-3492-01 Wireless barcoater approx. φ76.2μm No.3
model:
4-3492-01
category:
toner
Product Description
Product Model: 4-3492-01 Features The bar coater has no […]
Contact Us
Product Details
Product Model: 4-3492-01
Features
- The bar coater has no wires wrapped around it, and the bar itself has been processed so that there are no broken wires or misaligned wires.
- Beca*** it is wireless, it is easy to clean when applying sticky paint or paint thickly.
- It is easy to apply and compare several types of paint at the same time, and is easy to apply beca*** it is both hand-held.
Spec
- Wire diameter (in micrometers) (equivalent): about phi 76.2
- Wet film thickness (micrometers): 7.62
- Number of entries: 1
- Material: SUS 303
- Core diameter: phi 9.5 mm (3/8 inch)
- Total length: 406 mm (16 inches)
- Application width: 304 mm (12 inches)
- *The film thickness dep***s on the paint ***d and the speed at which the barcoater is pulled. Use the wet film thickness (in micrometers) as a reference value.
