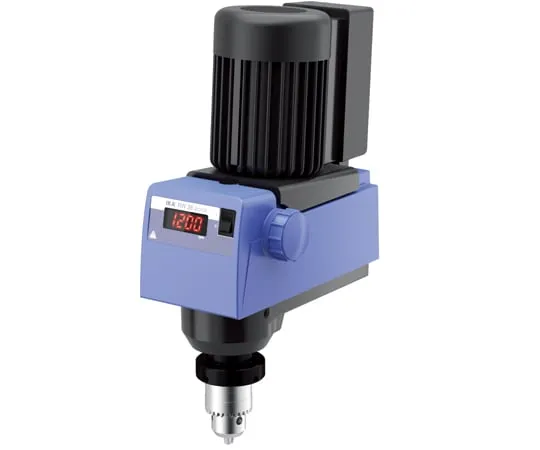

1-6608-11-22 Mechanical Controlled Stirrer RW28 Digital with Pre-shipment Inspection Document RW28digital
Product Description
Product Model: 1-6608-11-22Product Brand: IKA Features […]
Contact Us
Product Details
Product Model: 1-6608-11-22
Product Brand: IKA
Features
- Suitable for stirring up to 80 L.
- By changing gears, two rotational speed ranges can be selected, one for high viscosity and the other for concentrated stirring.
Spec
- Speed: (50 Hz) Gear I/60~400rpm, Gear II/240~1400rpm (60 Hz) Gear I/72~480rpm, Gear II/288~1680rpm
- Body
- Stirring Capacity (H2O): 80 L
- Viscosity Range: 50,000 mPa · s
- Motor input/output: 220/94W
- Support Arm: φ16 mm
- Power: 100 VAC 50/60Hz
- Power Cord Length: 2m (3P Plug)
- Applicable Shaft Diameter: φ1~φ10 mm
- Weight: 7.5 kg
- Protection class (DIN EN60529): IP40 compliant
- Size: 123 x 252 x 364 mm
- *Stand, boss head and stirring blades are not included.
- Code: 0005040001
- Inspection item: Actual measured speed (gear I display accuracy ±10rpm)
- Stirring Blade Compatible Models: R 1342 (1-7327-01), R 1345 (4-2399-01), R 1381 (1-3152-11), R 1382 (1-3152-07), R 1385 (1-3731-13), R 1388 (1-3731-14), R 1389 (61-0005-43), R 1311 (61-0005-36), R 1312 (1-7327-02), R 1313 (61-0005-37), R 1302 (1-7327-03), R 1303 (61-0005-62), R 1375 (1-7327-04), R 1376 (1-3731-16), R 1331 (1-7327-05), R 1333 (1-3731-18), R 3000.1 (63-1288-95), R 3001.1 (63-1288-96), R 3003 (63-1288-97), R 3003.1 (63-1288-98), R 3003.2 (63-1288-99), R 3004 (63-1289-01), R 1381 (-3152-11 -02), R 1382 (-3152 1385 -03), R 1342 (1-7327 1345), R -2399 (1 -14 -01)
