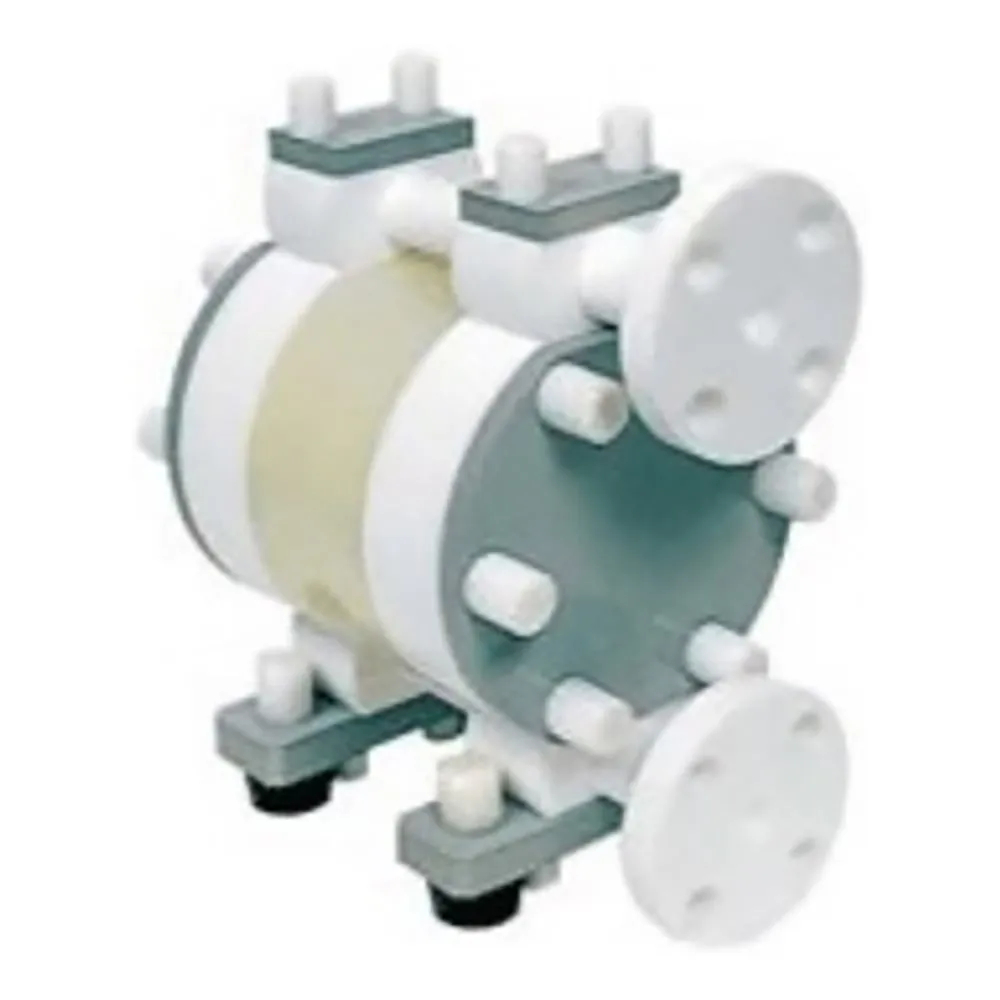

1-657-02 Teflon Diaphragm Pump 27000mL/Min DP-10F DP-10FPT
Product Description
Product Model: 1-657-02Product Brand: Yamada Corporatio […]
Contact Us
Product Details
Product Model: 1-657-02
Product Brand: Yamada Corporation
Features
- It is air-driven and explosion-proof.
- There is no need to worry about contamination of foreign matter.
- High discharge pressure for easy pressure adjustment.
- You can stop it first.
- It is completely self-sucking type and does not require water.
- You can operate without refueling.
Spec
- Model number: DP-10F (PT screw)
- Size: 208 x 250 x 265mm
- Weight: 7.2kg
- Material: Body (wetted part)/PTFE, PFA (teflon (R)), Diaphragm valve, valve sheet/PTFE (teflon (R)), Body (air switching part)/PP (polypropylene)
- Maximum discharge quantity: 27L/min
- Maximum discharge pressure: 0.49MPa (5kgf/cm2)
- *Maximum discharge quantity is Test data at room temperature (20℃), with city water.
