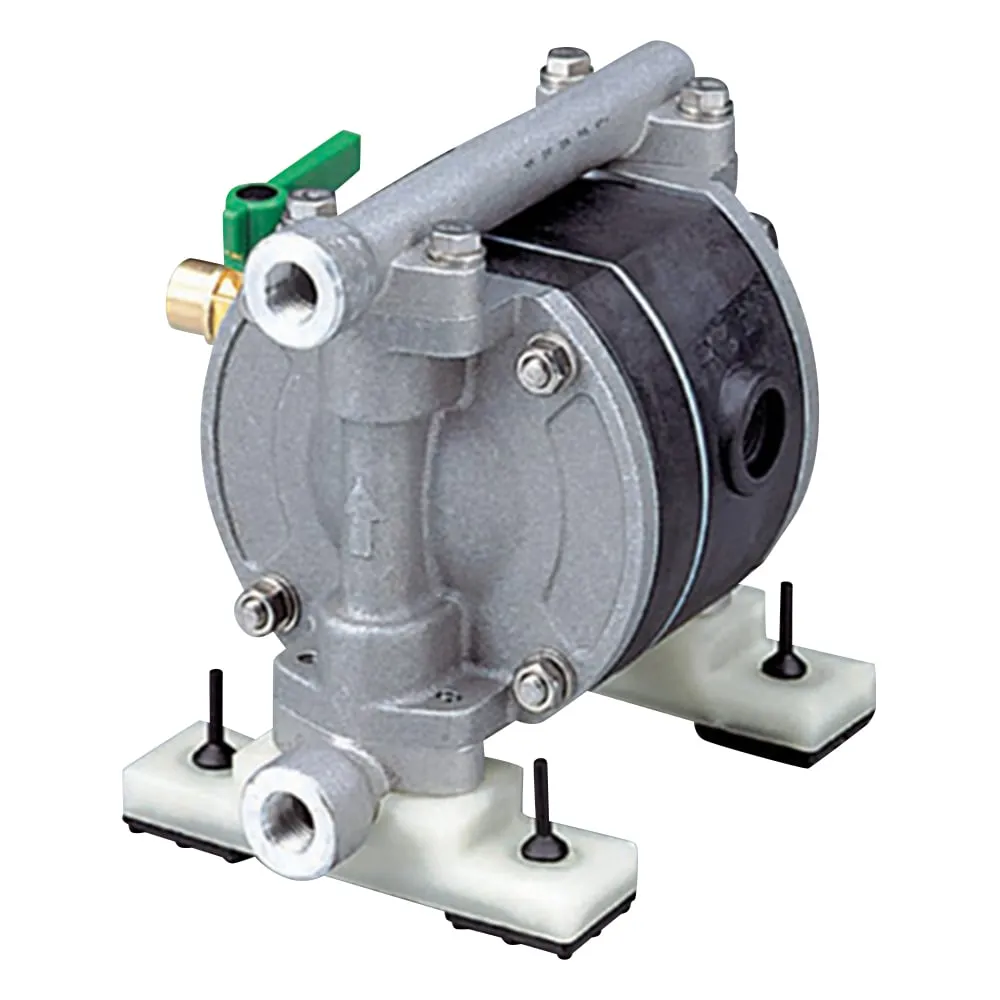

1-656-01 Diaphragm Pump 10000mL/Min NDP-5FAT
Product Description
Product Model: 1-656-01Product Brand: Yamada Corporatio […]
Contact Us
Product Details
Product Model: 1-656-01
Product Brand: Yamada Corporation
Features
- Has excellent wear resistance.
- It is completely self-sucking and can be operated.
- Has a high discharge head.
- It is air-driven and explosion-proof.
- The amount of discharge is large, and flow control is easy.
- * Slurry liquid cannot be fed.
Spec
- Model number: NDP-5FAT
- Size: 110 x 155 x 149mm
- Weight: 1.6kg
- Body material (wetting part): Aluminum alloy (AC4C)
- Self‐priming power: 1.0m
- Air pressure ***d: Approximately 0.20 - 0.69MPa (2 - 7kgf/cm2)
- Maximum discharge quantity: 10L/min
- Maximum discharge pressure: Approximately 0.69MPa (7kgf/cm2)
