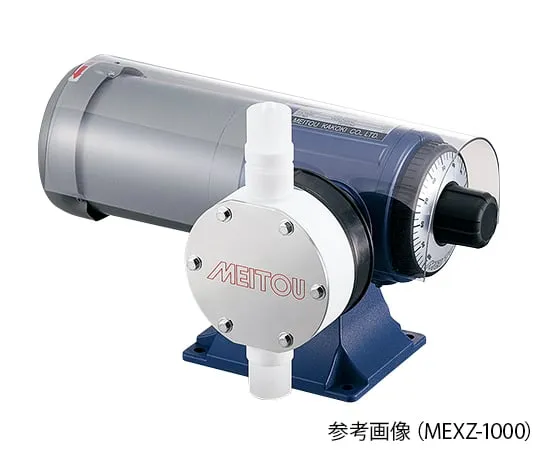

1-648-21 Diaphragm Quantitative Pump MEXZ-50
Product Description
Product Model: 1-648-21Product Brand: MEITOU KAKOUKI CO […]
Contact Us
Product Details
Product Model: 1-648-21
Product Brand: MEITOU KAKOUKI CO., LTD.
Features
- The flow rate can be adjusted continuously during operation or shutdown.
- Two-stage planetary gear reduction enables continuous operation for a long time.
- Aluminum material inside makes it lightweight.
- * The wetted part is made of PTFE and has excellent chemical resistance.
Spec
- Model number: MEXZ- 50
- Discharge amount (mL/min): 5 to 50
- Discharge amount (mL/min): 6 to 60
- Maximum pressure (MPa): 0.2
- Pump head
- *Material: PTFE (Fluororesin)
- *Connector hose diameter (φmm): 10 x 12
- Suction lifting height: 2 m
- Usable liquid viscosity: 300 mPa*s
- Materials of liquid contact part: diaphragm O-ring head attached hose : PTFE (ethylene tetrafluoride)
- Weight: 11kg
- Power supply: AC100V 65W
- Accessories: Hose 4m
- *Safety increased explosion-proof motor, pressure-resistant explosion-proof motor, differential voltage motor, etc. can be installed. Please contact us.
- *The pressure resistance of the attached PTFE tube is 0.2 MPa.
