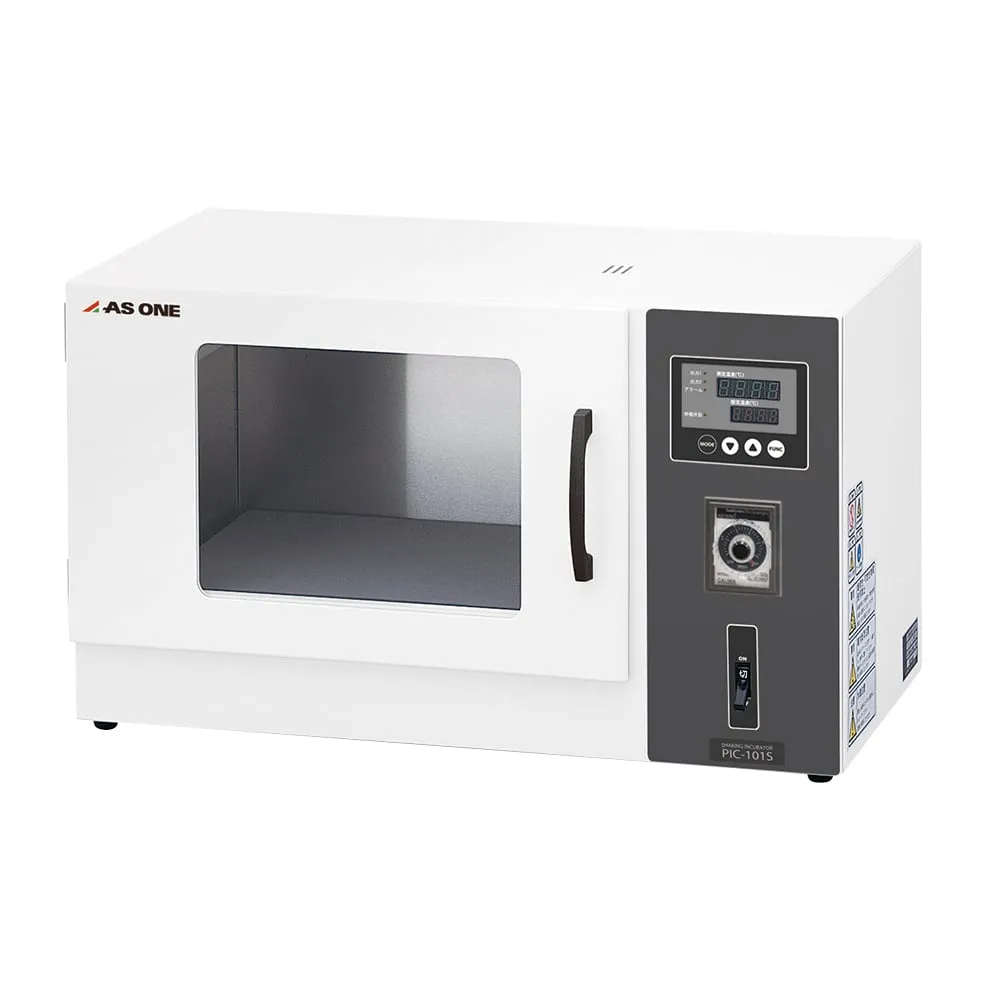

1-6142-11 Small Incubator PIC-101S
model:
1-6142-11
category:
laboratoryinstruments
Product Description
Product Model: 1-6142-11 Features Shaking function adde […]
Contact Us
Product Details
Product Model: 1-6142-11
Features
- Shaking function added to tabletop thermostat!
- A large observation window allows you to check the inside of the wareho***.
- Natural convection prevents the sample from drying out.
- The interior is made of aluminum with high thermal conductivity and has excellent temperature distribution.
- Four timer functions (ON/OFF/ON/OFF/SV start) are standard.
Spec
- Temperature settings range (°C): R.T. + 7 to 60
- Shaking speed (rpm): 12 to 180
- Material : Body/Steel baked paint , Observation Window/PMMA (acrylic)
- Inner dimensions: 312 x 220 x 201mm (Effective height: 160mm)
- Outer dimensions: 491 x 296 x 291mm
- Dimensions shaking table : 262 x 200mm
- Temperature distribution width: 2 °C (At 37 °C)
- Sensor: Pt 100Ω
- Temperature control: PID control and SSR output
- Timer function: ON/OFF, ON/OFF, SV timer
- Timer setting range: 1 minute to 99 hours 59 minutes
- Heater capacity: 80W
- Stirring method: Stagger with vibration (round trip)
- Amplitude: 30mm
- Power consumption: 100W
- Power supply: AC100V 50/60Hz
- Power cord length: 1.5 m (3P plug)
- Safety device: overcurrent breaker
