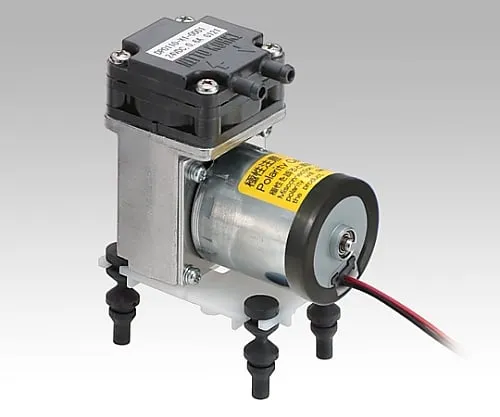

1-6116-01 Vacuum Pump DP0110-X3-DC12V
model:
1-6116-01
category:
laboratoryinstruments
Product Description
Product Model: 1-6116-01 Features A pump for both vacuu […]
Contact Us
Product Details
Product Model: 1-6116-01
Features
- A pump for both vacuum pump and compressor, suitable for installation in equipment.
- The rotation speed can be controlled by PWM, and the function to detect and output the rotation speed is added.
Spec
- Model number: DP0110-A1155-X3
- Discharge air volume (L/min): Up to 7.5 (variable)
- Pressure range (kPa): -66.6 to +150
- Control system: PWM (Pulse width modulation) system
- Control input signal: Voltage/2.5 - 5.0V, Frequency/15 - 25kHz
- Size: 41 x 75 x 72mm
- Mounting portion dimensions: 50 x 30mm
- Intake, discharge port outer diameter: φ6 mm
- Noise level: 50dB
- Power supply: 12VDC (equipped with about 180mm lead wire)
- Weight: 0.3kg
- Accessories: Vibration-proof rubber x 4
