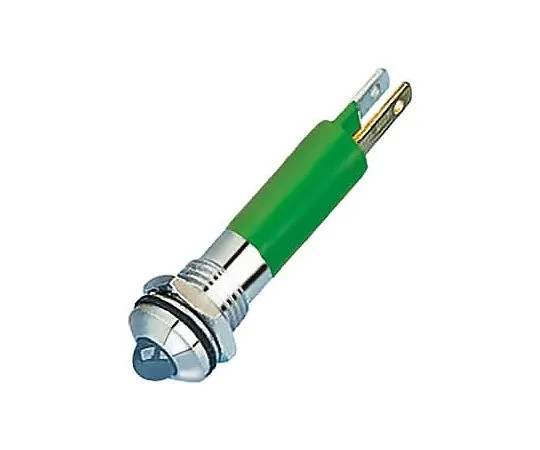

63-4587-30 RS PRO Green Indicator, 24 V ac/dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67 211-522
Product Description
Product Model: 63-4587-30Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4587-30
Product Brand: RS PRO
Features
- Fixed Nut, Washer, Gasket
- RS Pro LED Indicator, 8 mm Mounting, 12/24 V ac/dc, 190 Series
- This LED indicator product from RS Pro is perfect for both indoor and outdoor applications. The front panel is rated IP67 and works well in harsh environments. All models boast high reliability and excellent quality.
- Features/Advantages
- 5 mm high-contrast white diffusion epoxy lens
- IP67 rating (front panel)
- 9.5 mm, concave or convex, glossy satin, black or brushed chrome brass bezel
- Operating temperature range: -20→+50°C
- 0.110 inch (2.8 x 0.8 mm) terminal
- Gold terminal is anode +ve
- Solder tab terminal
Spec
- Light Output Colour:Green
- Mounting Hole Size:8mm
- Lamp Type:LED
- Termination Type:Solder Tab
- IP Rating:IP67
- Bezel Style:Prominent
- Bezel Colour:Chrome
- Current Rating:20mA
- Intensity:40mcd
- Length:44mm
- CODE No.:211-522
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-5080-71 15 Way D-Sub Plug Connector Kit With Assembly, Contact Insert, D-sub Plug Connector, Full Metal Jack Screws, Hood, UNC MHDTZK15-DM15P-K
model: 63-5080-71
brand: MH Connectors
Electronic/Electrical Parts and Controll Equipments
Electronic/Electrical Parts and Controll Equipments

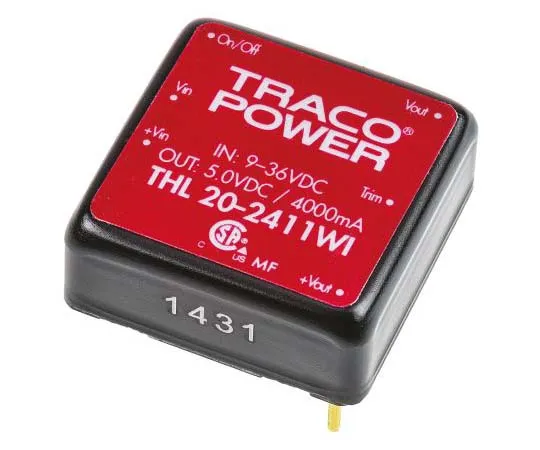

63-7773-46 TRACOPOWER THL 20WI 20W Isolated DC-DC Converter Through Hole, Voltage in 9 → 36 V dc, Voltage out 5V dc THL 20-2411WI
