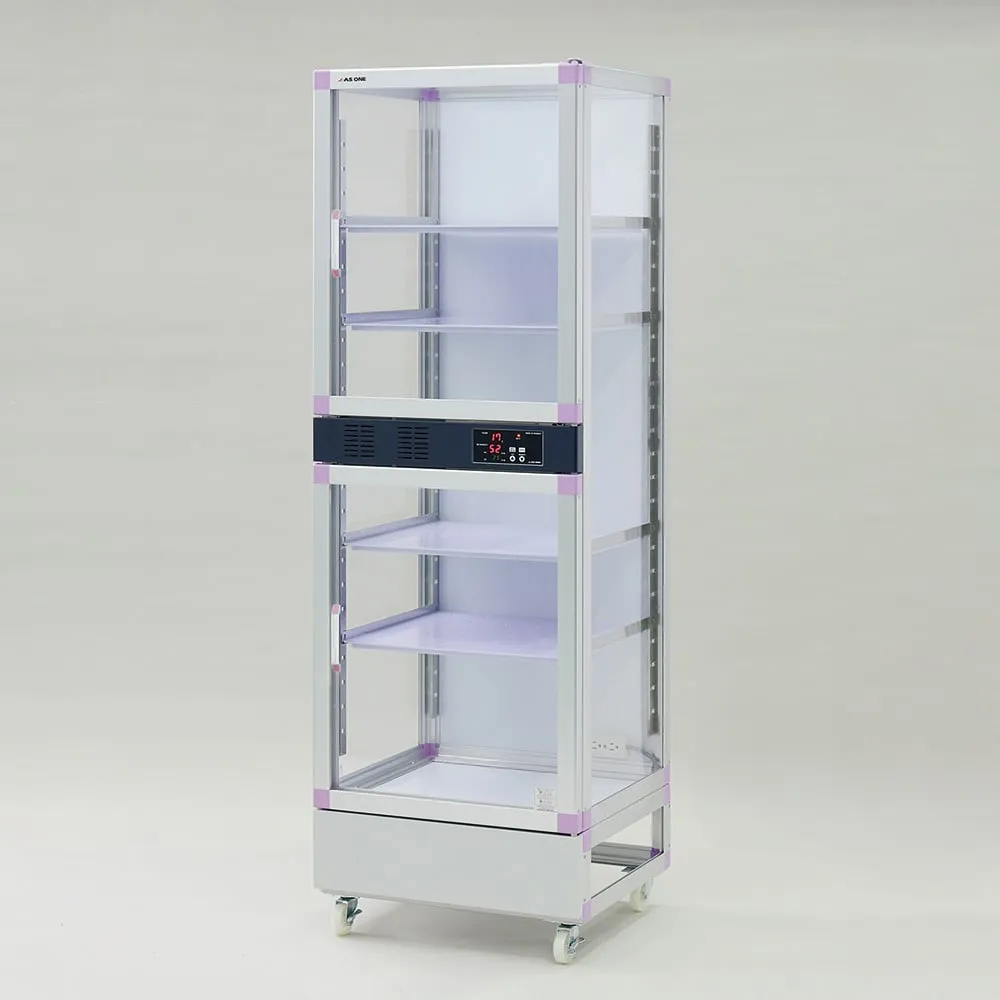

4-745-11 Digital Dry Desiccator H-Series 574 x 524 x 1765 mm TDD-H600SPC
Product Description
Product Model: 4-745-11Product Brand: AS ONE Corporatio […]
Contact Us
Product Details
Product Model: 4-745-11
Product Brand: AS ONE Corporation
Features
- Continuously removes moisture from the inside air -
- A new type of solid polymer electrolyte membrane (Rosal ®) is installed on the front panel to directly electrolyze and continuously remove moisture from the inside air.
- Wide Dehumidifier Area & Digital Settings - Moisture inside the desiccator is discharged directly to the outside in a gaseous state, so no water droplets (drain) are produced.
Spec
- external dimension (mm) : 574 x 524 x 1765
- inner size (mm) : 560 x 483 x 1486
- Dehumidification system: H2O electrolysis discharge by solid polymer electrolysis dehumidification element (Rosalle ®)
- Dehumidification ability (When 30% rh is set) * 1: Within 8 hours
- Humidity Setting Range: 10 to 60% RH
- Humidity control range * 2: 15 %RH to indoor temperature
- measurement range : 0 to 60 ° C/10 to 60 %RH
- Temperature and Humidity Sensor: Temperature/Thermistor Element, Humidity/Resistance Type Sensor for Low Humidity Measurement
- Dehumidifying element area: about 98 cm2
- Humidity Control System: Microcomputer-Based ON/OFF Control
- Temperature and Humidity Display Accuracy * 3: ± 1 ° C (25 to 40 ° C)/± 5 %RH (15 to 40% RHat 25 ° C)
- Display resolution: 1 ° C/1 %RH
- Sampling interval: 0.5 sec
- material: Body/PMMA (acrylic)/Frame/Aluminum/Control Unit/Steel Steel Plate
- shelf board Dimensions : 490 mm x 460 mm
- Shelf Board Mounting pitch (Min shelf board interval): 50 mm (35 mm)
- shelf board Specifications : Reinforced Plastic (impact resistant polystyrene)
- shelf board Load tolerance Co., Ltd.: about 10 kg/sheet
- Safety device: individual operation abnormality error display function of solid polymer electrolysis dehumidification element (In case of short circuit or disconnection)/overcurrent f***
- power supply: AC100V 50/60 Hz
- Power Consumption: about 63 W
- power cord length : about 2 m (3P Plug/Body Grounded)
- Caster: φ 65 Made of mm Nylon (With Stopper x 2 pieces)
- Weight: about 38 kg
- Inner Outlet: Outlet Part/3P x 2 inlets (Cable for rear connection approx. 2m, separate system from dehumidification unit), rating/AC100V 15 A (Within Connection capacity)
- Accessory: Reinforced Plastic shelf board x 4 pieces
*This product might require extra fees.
