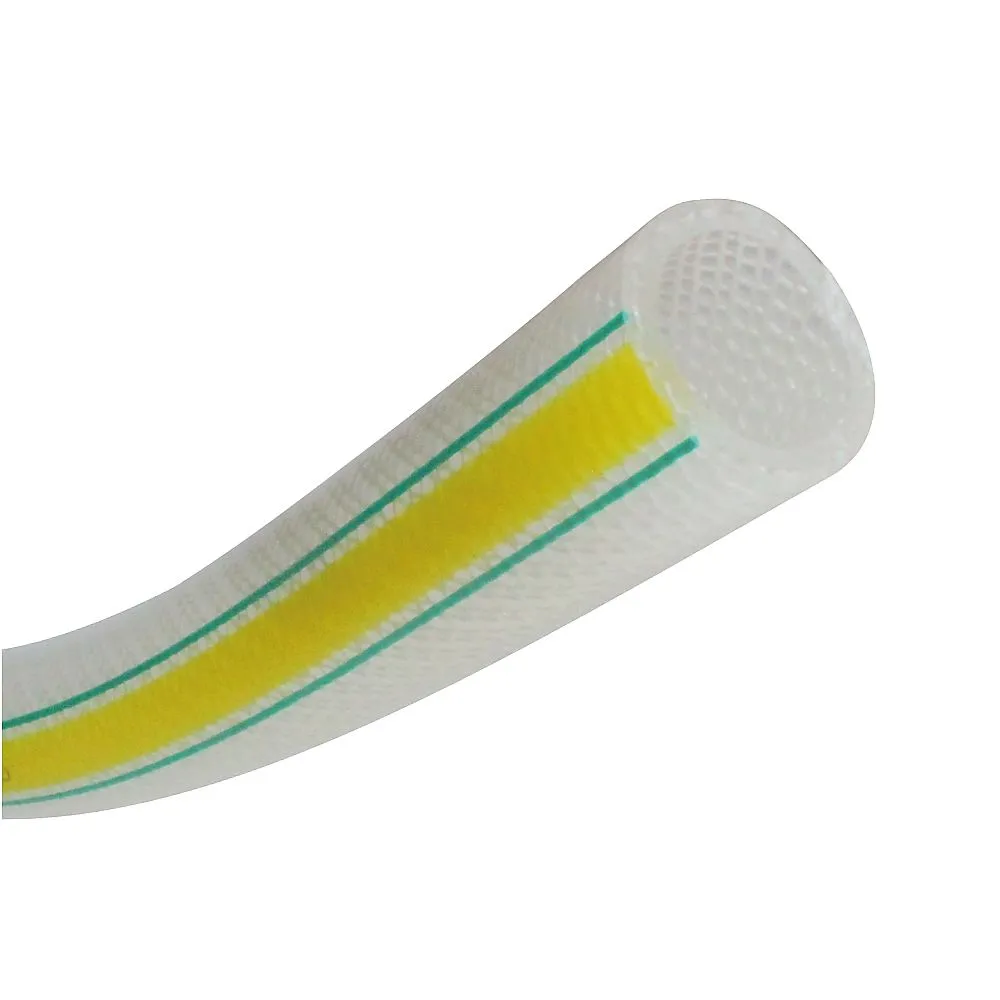

65-0868-16 Ecologne Hose for transporting various foods, drugs, solvents, oils, etc. EC-50-1
Product Description
Product Model: 65-0868-16Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0868-16
Product Brand: TOYOX CO., LTD.
Features
- "Main application": For transporting food, beverages, oils and fats, chemicals, cosmetics, etc. "Non-PVC": Made of inner tube polyolefin resin, this is a pressure resistant blade hose with chemical resistance, low elution, and low odor that can be ***d for transporting chemicals, chemicals, pure water, cosmetics, and food.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196)
- Compliance with Standards: Compliance with RoHS2 (as of October 2021)
- * This hose is for indoor *** only.
Spec
- Inner diameter x Outer diameter (mm): 50 x 62
- Pressure (Mpa): 0 to 0.3 (23 °C), 0 to 0.2 (60 °C)
- Operating temperature range: -5 to 60 °C
- Length: 1 m
- Material: Body/Polyolefin Plastic + Styrene Plastic, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 290 mm
