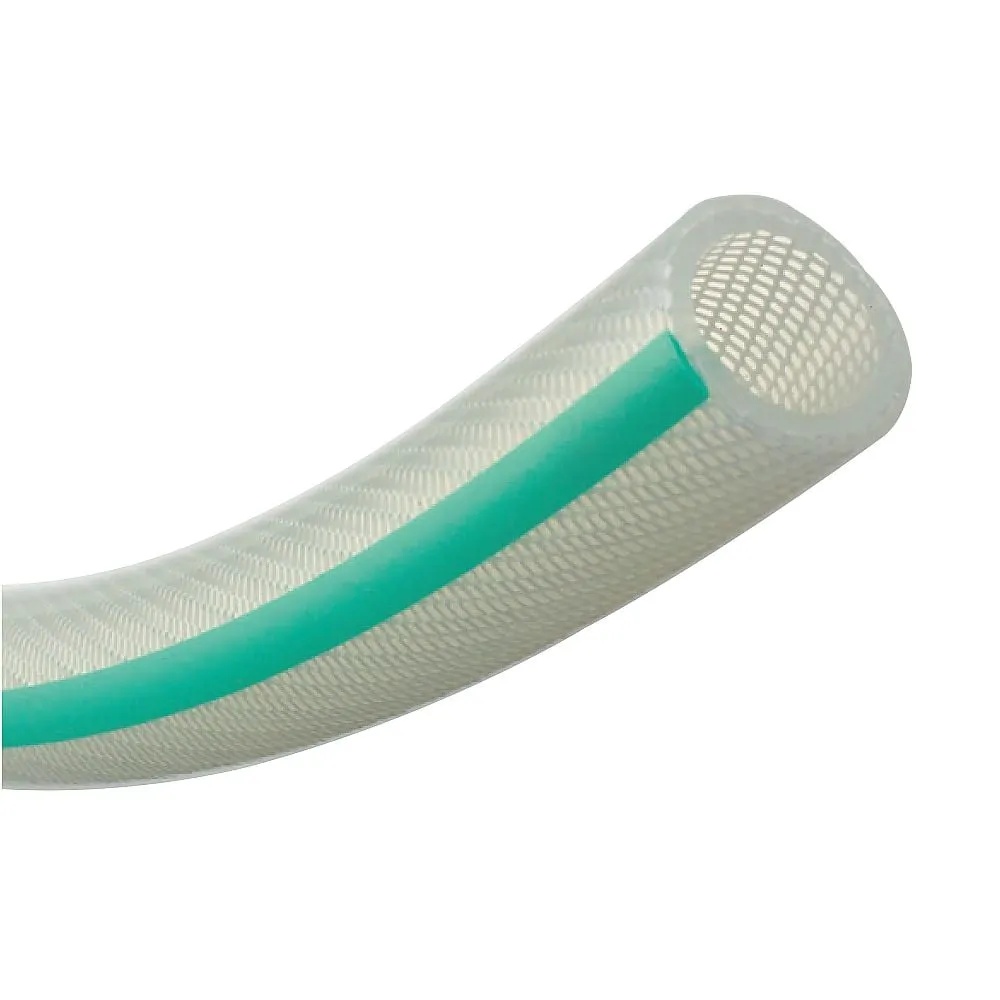

65-0864-96 Toyo Silicone Hose For Filling Machine, Food Machine, Cooling Device, Heat Resistant Piping TSI-32-1
Product Description
Product Model: 65-0864-96Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0864-96
Product Brand: TOYOX CO., LTD.
Features
- Heat-Resistant/Cold-Resistant: A heat-resistant, pressure-resistant blade hose for pressure feeding made of silicone rubber. Heat-resistant hose that can be ***d in a wide range of temperatures from -30°C to 150°C.
- "Trouble prevention": High pressure resistance and safety with thread pull-out prevention structure.
- "Safe and secure": Can be ***d as a safe and secure heat-resistant hose, taking advantage of its characteristics such as low elution, insulation, and low odor.
- "Flexibility": More flexible than rubber hose or PVC hose and easier to pipe.
- The product complies with the Food Sanitation Law, FDA (U.S. Food and Drug Administration), USP (U.S. Pharmacopoeia) ClassVI, and RoHS2 revised regulations. Can be ***d safely as a food hose.
Spec
- Inner diameter x Outer diameter (mm): 32 x 43.5
- Pressure (Mpa): 0 to 0.5
- Operating temperature range: -30 to 150 °C
- Length: 1 m
- Material: Body/Silicone Rubber, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 250 mm
