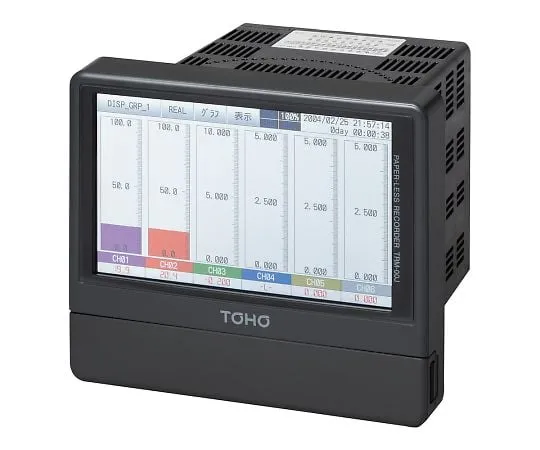

4-2450-01 6CH Paperless Recorder 6-Point Input Recorder TRM-00J-Z
Product Description
Product Model: 4-2450-01Product Brand: TOHO ELECTRONICS […]
Contact Us
Product Details
Product Model: 4-2450-01
Product Brand: TOHO ELECTRONICS INC.
Features
- 7-inch large touch panel for simple operation.
- Large capacity recording (up to 32 GB) with SD card or USB memory is possible.
- Supports 6-channel multi-inputs.
Spec
- Specifications: 6-Point Input Recorder
- Size (mm): 185 x 188 x 160
- Measurement period: 100 ms
- Recording period: 100 ms, to: 60 min
- Input Type: thermocouple, temperature measuring resistor, DC voltage, DC current
- Display: 7-inch TFT color LCD wide VGA (Pressure-Sensitive touch panel)
- Display Items: Real-time Tr***, Historical Tr***, Bar Graph, Digital Display, Event History Display
- DI: 9 non-voltage contacts
- DO: 12 open collector outputs (Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common Common)
- Alarm output: Number of settings/4 points for each channel (Open Collector Output: 1 Point, Contact rating: 30 VDC/20 mA)
- Storage media: SD card, USB memory (Up to 32 GB)
- Recorded file data storage period: 10 minutes to: 1 year
- recording formats: CSV format
- Communication standards: RS 485, USB 2.0
- power supply Specifications: AC100 to 240 V 50/60 Hz
- material : PC-ABS (With the case and bezel)
- Weight: about 1.4 kg
- dust control waterproofing — IP 54 compliant
- power cord : Approximately 2 m (3P Plug)
