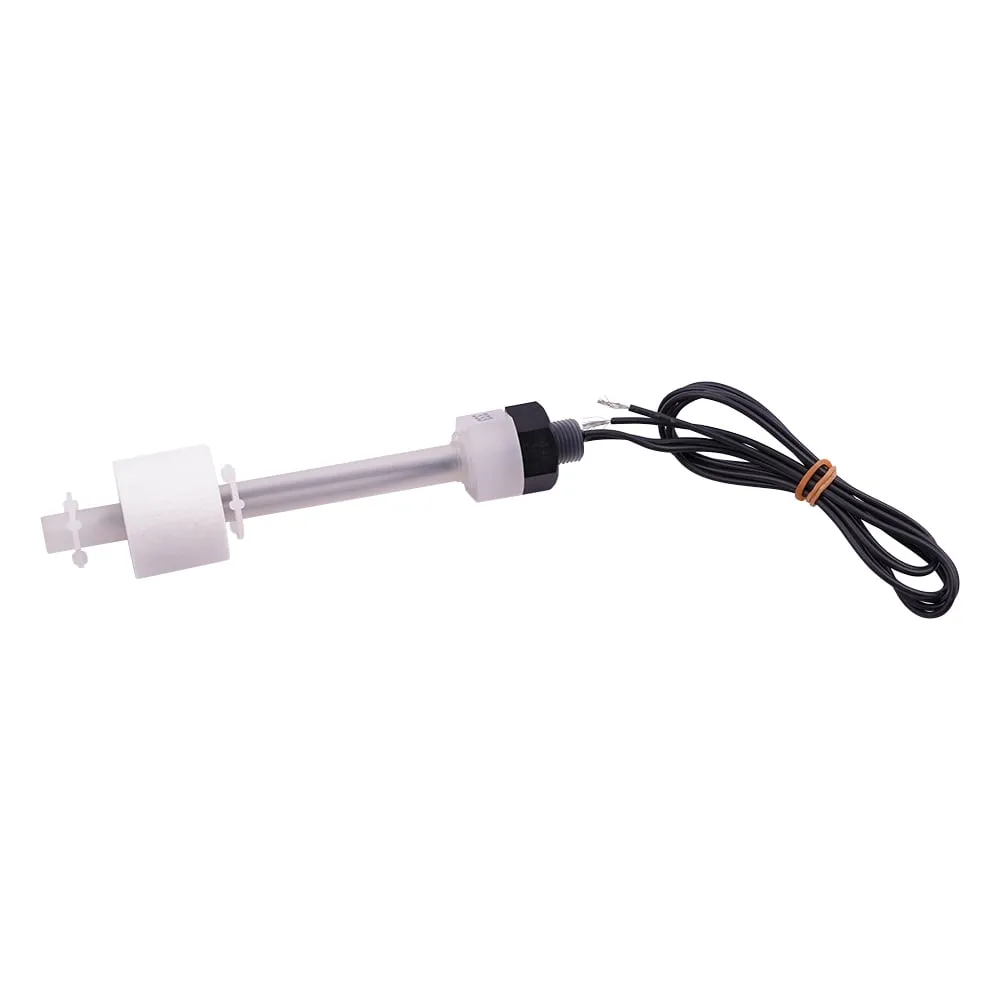

4-2132-01 Float Switch (Long type) PP-100
model:
4-2132-01
category:
toner
Product Description
Product Model: 4-2132-01 Features Long life reed switch […]
Contact Us
Product Details
Product Model: 4-2132-01
Features
- Long life reed switch is ***d for the contact (12 VDC, 5 mA, approx. 10 million times at resistive load).
- The float is reversible and can be raised or lowered (raised ON at the time of shipment).
- The maximum stem length is 1,000 mm (custom-made).
Spec
- stem length (mm): 100
- main body material: PP
- material: Body/PP, Float/Expanded PP
- Maximum Working Voltage: 240 VAC, 200 VDC
- Maximum open and close Current: 0.5 A (AC, DC)
- open and close capacity max : 50 VA (AC) , 50 W (DC)
- Detection accuracy: ± 3 mm
- Stem Diameter: Φ8 mm
- Mounting Part standards: G 1/8
- Float Size: Φ 25 x 20 mm
- Lead Wire Length: 500 mm
- Contact resistance: 350 mΩ or less
