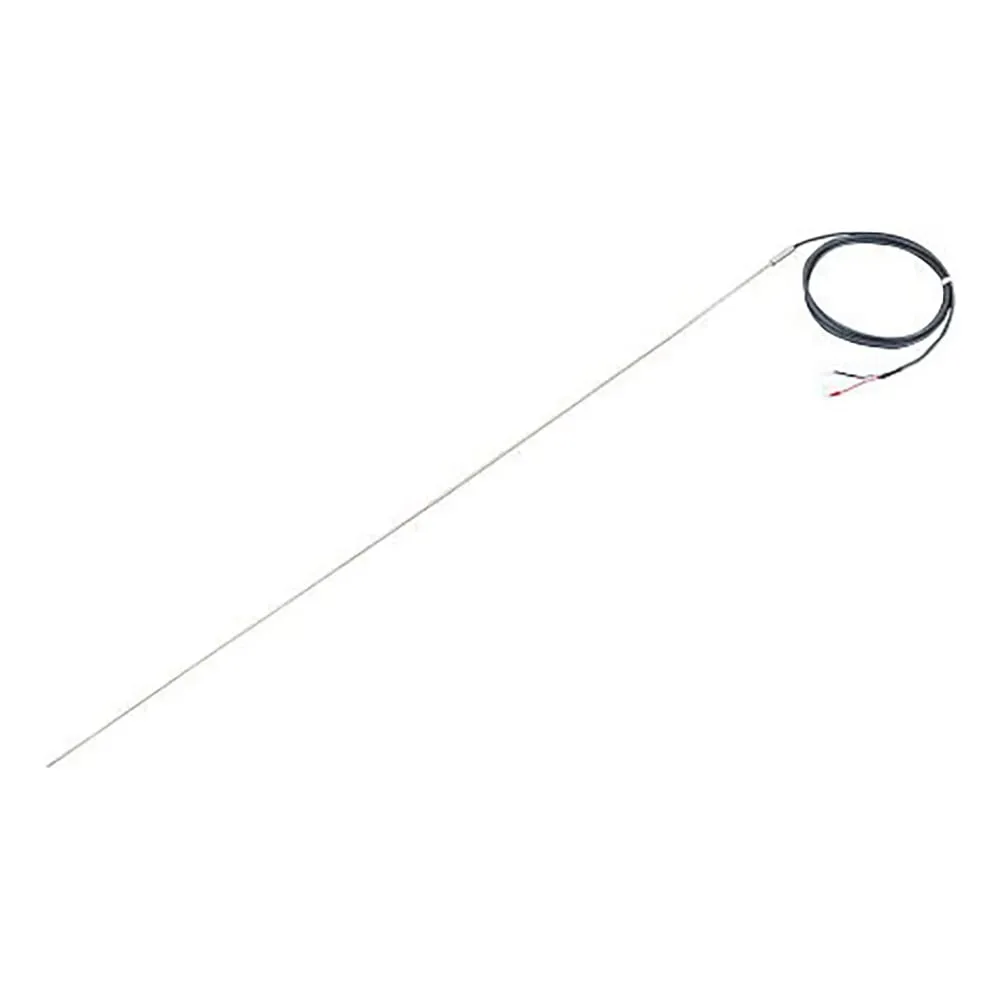

4-2125-01 Resistance Temperature Measuring sensor (Long Type) B-Φ1.6-500
model:
4-2125-01
category:
toner
Product Description
Product Model: 4-2125-01 Spec Accuracy: B Class ± (0.3 […]
Contact Us
Product Details
Product Model: 4-2125-01
Spec
- Accuracy: B Class ± (0.3 + 0.005 ¦ t ¦)
- Sheath Protection Tube Diameter x Length (mm): Φ 1.6 x 500
- Element: Platinum Resistance Temperature Measuring Body Pt 100 Ω 3-Wire Type
- material on sheath : SUS316
- Lead Wire: Vinyl Coated End M4 Y Terminal Treatment
- Lead wire length: 2 m
- Operating Temperature Range: -196 to 450 ° C (Temperature Sensitive Part chisel)
- Sleeve part heat resistant temperature: 80 ° C
