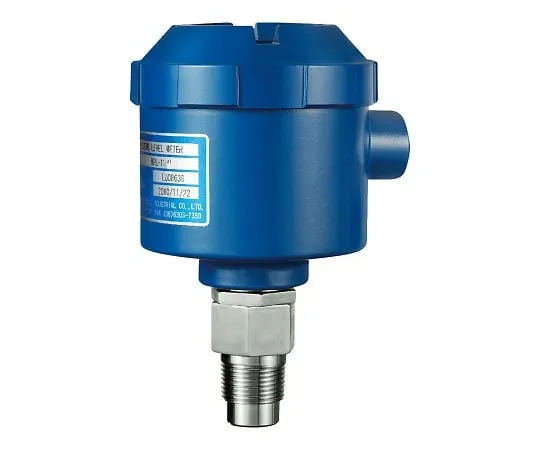

4-1742-01 Pressure type level Meter 3m MPL-13S1-RE11-3
Product Description
Product Model: 4-1742-01Product Brand: Yamamoto Electri […]
Contact Us
Product Details
Product Model: 4-1742-01
Product Brand: Yamamoto Electric Industrial
Features
- High performance with linearity accuracy ± 0.5% F.S.
- Sensor that is not affected by changes in liquid properties (excluding changes in specific gravity).
- Zero span adjustment is possible by one-touch push button.
Spec
- Measuring range (m) * 1: 3
- Cable length (m): 3
- material : SUS316L
- power supply: 20 AC/DC to 250 V
- Power Consumption: 2.0 VA
- Current output: DC4 to 20 mA
- connections: R 3/4 screws
- *1 Measurement range is equivalent to the water level of liquid of specific gravity 1.
- *Cannot be ***d in an environment where pressure is applied inside the tank.
