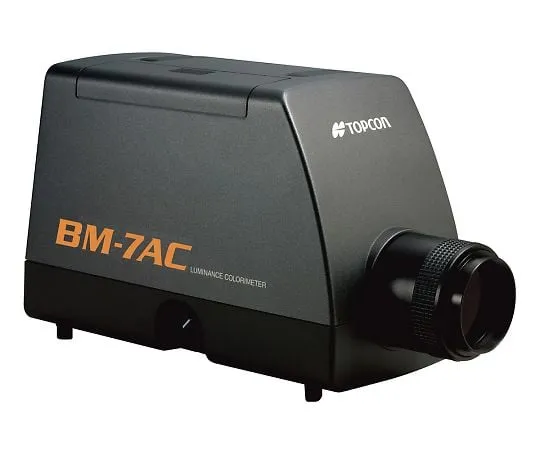

4-2435-21 Color Luminance Meter main unit BM-7AC
Product Description
Product Model: 4-2435-21Product Brand: TOPCON TECHNOHOU […]
Contact Us
Product Details
Product Model: 4-2435-21
Product Brand: TOPCON TECHNOHOUSE
Features
- It can be ***d as a standard measuring machine for measuring brightness and chromaticity of FPD (Flat Panel Display) and light source lamps.
- Beca*** of its high chromaticity accuracy and high speed, it is suitable for *** in the field of light source color measurement such as in-line measurement and light management of light sources.
Spec
- Contents: Body
- External dimensions (mm): 120 x 325 x 162
- Photodetector: Silicon photodiode
- Measuring angles: 2 degrees/1 degrees/0.2 degrees/0.1 degrees (switchable)
- Measuring distance: 350 mm to infinity (distance from the *** of the objective lens hardware)
- Measuring range: auto/manual 5-step switch
- Measuring functions: x, y, L (x, y: chromaticity coordinates, L: brightness) and +/- BR, u ', v', L (u ', v': chromaticity coordinates, L: brightness) and +/- DR, X, Y, Z (X, Y, Z: Tristimulus values) and +/- DR, Tc, duv, L (Tc: correlated color temperature, duv: deviation) and +/- DR, CIE 1976 L *, a *, b *, minr Eab * and +/- DR, CIE 1976 L *, u *, v *, minr Euv * and +/- DR
- Brightness measurement range: 0.01 ~ 12 million cd/m2
- Measuring time: About 0.5 seconds
- Power supply: AC adapter (included)
- Weight: 3 kg
- Package Contents: Main unit, carrying case, proof of calibration (with Japanese traceability system diagram), test data (in Japanese)
- Accessories: AC adapter, application software CD-ROM (colorimetry program CS -900 A * OS: Windows (R) 10 Pro/8 Pro), analog output plug
