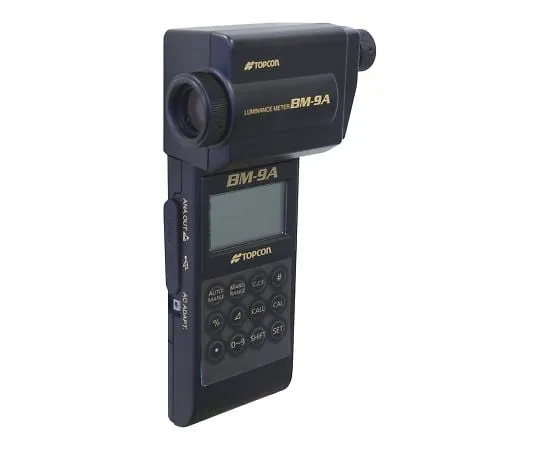

4-2138-11 Luminometer 2 deg. BM-9ACBM-9A20D
Product Description
Product Model: 4-2138-11Product Brand: TOPCON TECHNOHOU […]
Contact Us
Product Details
Product Model: 4-2138-11
Product Brand: TOPCON TECHNOHOUSE
Features
- The light-receiving section and the main body can be separated, and it is also suitable for *** in system equipment and production lines.
Spec
- Measuring angle: 2 degrees
- Measuring range (cd/m2): 0.01 ~ 280,000
- Number of entries: 1 formula
- Optical system: objective lens/f = 36 mm, F = 2.5, viewfinder field/5 degrees
- Spectral sensitivity characteristics/Within 6% (deviation from standard specific sensitivity) * JIS C 1609 -1 2006
- Measuring distance: 350 mm to infinity
- Minimum measuring diameter (when using AL -13): phi 9.5 mm (phi 1.02 mm)
- Brightness: +/- 2% of rdg. +/- 2 digits (over 0.1 cd/m2)
- Interface: USB (virtual COM port)
- Power supply: 2 AA batteries (sold separately) or dedicated AC adapter (sold separately)
- Size: 108 x 191 x 57 mm (Display/65 x 131 x 28 mm, Light Receiver/108 x 60 x 57 mm)
- Weight: approx. 350 g (Display/About 130 g (excluding batteries), Light Receiver/About 220 g) without batteries
- Package Contents: Luminometer Display Unit, Light Receiver, Calibration Certificate (with Japanese Traceability System Diagram), Test Data (Japanese)
