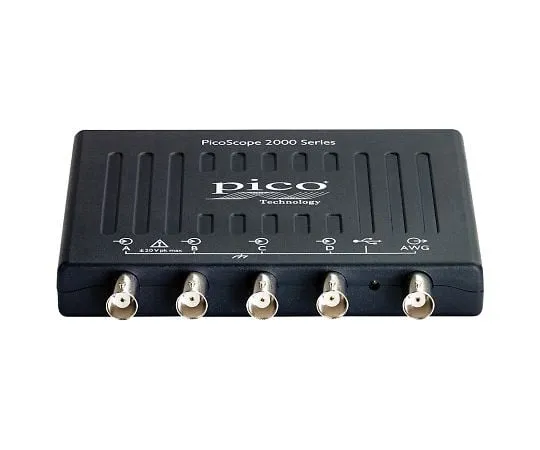

4-1699-01 PicoScope 2000 Series PC Oscilloscope 4Ch 100 MHz PicoScope 2408B
Product Description
Product Model: 4-1699-01Product Brand: Pico Technology […]
Contact Us
Product Details
Product Model: 4-1699-01
Product Brand: Pico Technology
Features
- It is the latest compact and lightweight alternative to benchtop devices.
Spec
- Frequency band (MHz): 100
- Memory (MS): 128
- Number of Channels: Analog 4
- Input Range: ± 20 mV, ± 50 mV, ± 100 mV, ± 200 mV, ± 500 mV, ± 1 V, ± 2 V, ± 5 V, ± 10 V, ± 20 V
- Input impedance: 1 MΩ
- Sampling rate: 1 GS/s
- Minimum vertical axis sensitivity: 4 mV/div
- Maximum vertical axis sensitivity: 4V/div
- Vertical resolution: 8 bit
- Output: Function generator, AWG 1 MHz
- Built-in arbitrary waveform generation function: sine wave, rectangular wave, triangular wave, DC, ramp waveform, sinc function, Gaussian function, sine half wave
- Size: 130 x 104 x 18.8 mm
- Weight: 0.2 kg
- power supply: powering from USB port
- Accessories: Passive Probe (220 A/B/2 pieces , 240 A/B/4 pieces), USB Cable, Quick Start Guide, Software, Reference CD
