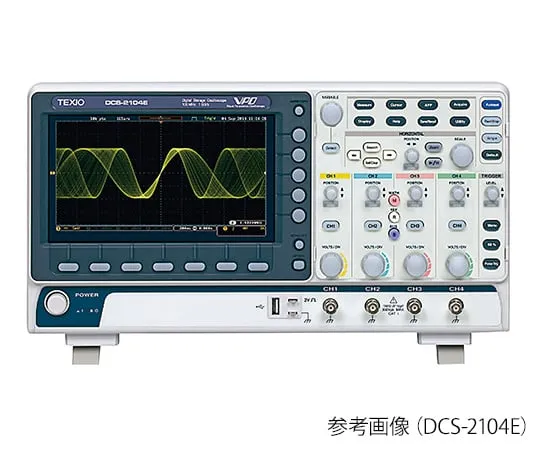

4-1095-03 Digital Storage Oscilloscope DCS-2204E
Product Description
Product Model: 4-1095-03Product Brand: TEXIO TECHNOLOGY […]
Contact Us
Product Details
Product Model: 4-1095-03
Product Brand: TEXIO TECHNOLOGY
Features
- Fast waveform updates of up to 120,000 waveforms per second and grayscale display with VPO technology enable clear observation of rare phenomena.
- The waveform memory of up to 10M points/ch and the segment function of up to 29,000 screens make it possible to capture only necessary phenomena efficiently.
- Segment memory function Up to 29,000 waveforms can be recorded, analyzed, and saved for each trigger event.
Spec
- Number of channels: 4 channels
- Frequency Band: DC to 200 MHz
- Sampling rate: 2 ch or less/1GS/s, 3 ch or more/500 MS/s
- Input Impedance: 1 MΩ// about 16 pF
- DC Gain Probability: ± 3% Full Scale/2 mV/div to 10 V/div, ± 5% Full Scale/1 mV/div
- Polarity: Normal, Reverse
- resolution: 8-bit
- Sensitivity: 1 mV/div to 10 V/div
- Waveform Calculator :+・-・ × ÷ • FFT • FFTrms • User-Defined Operation
- Size: 384 x 127 x 208 mm
- Weight: about 2.8 kg
- power supply: AC100 to 240 V 50/60 Hz
- Power Consumption: about 30 W
- Accessories: power cord (For AC100V), Probe (ch minutes)
