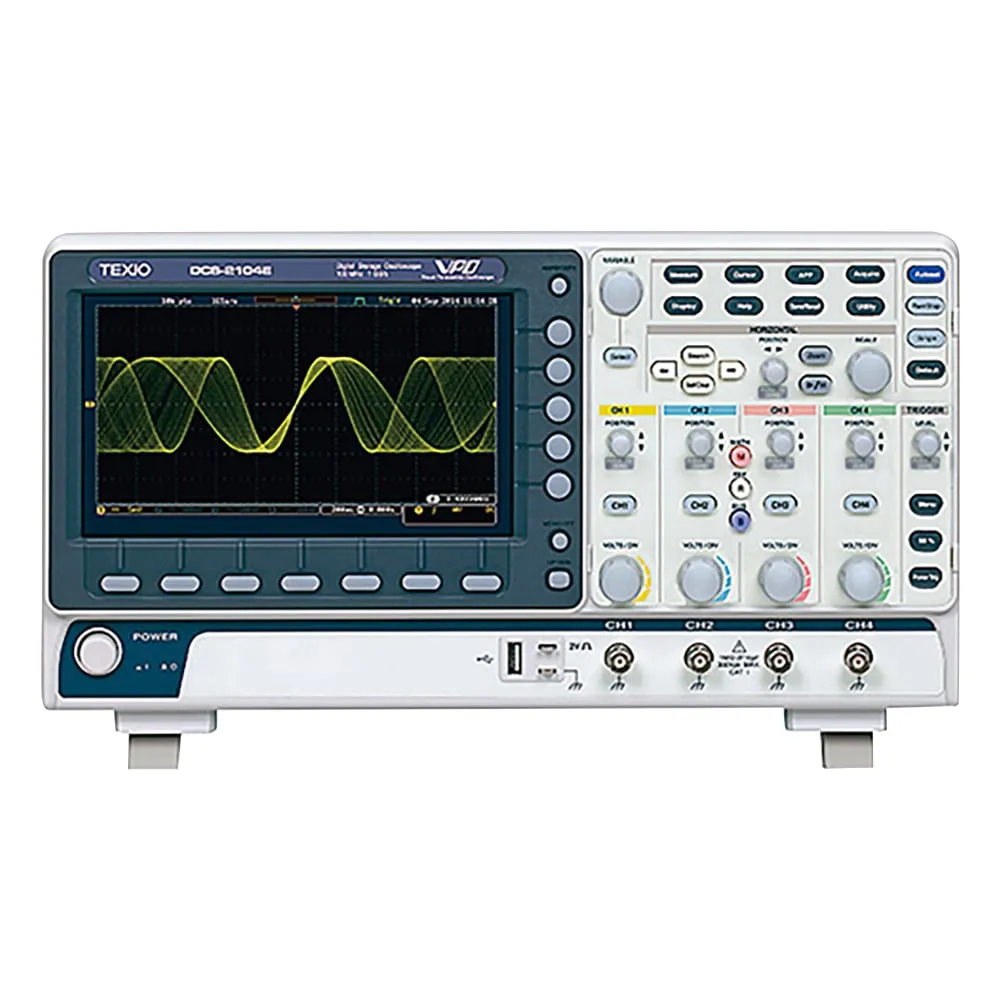

4-1095-02-20 Digital Storage Tiloscope with Calibration Certificate DCS-2104E
Product Description
Product Model: 4-1095-02-20Product Brand: TEXIO TECHNOL […]
Contact Us
Product Details
Product Model: 4-1095-02-20
Product Brand: TEXIO TECHNOLOGY
Features
- High-speed waveform update of up to 120,000 waveforms per second and gradation display using VPO technology enable clear observation of rare phenomena.
- Up to 10 Mpoints per channel of waveform memory and up to 29,000 screen segments enable you to efficiently capture only the necessary phenomena.
- Segment Memory Function Up to 29,000 waveforms can be recorded, analyzed, and saved for each trigger event.
Spec
- Number of channels: 4
- Frequency Range: DC to 100 MHz
- Sampling rate: 2 channels or less/1 GS/s, 3 channels or more/500 MS/s
- Input Impedance: 1 MΩ// Approx. 16 pF
- DC Gain Accuracy: ±3% Full Scale/2 mV/div~10 V/div, ±5% Full Scale/1 mV/div
- Polarity: Normal, Inverted
- Resolution: 8-bit
- Sensitivity: 1 mV/div to 10 V/div
- Waveform calculation functions :+・-・×, ÷, FFT, FFTrms, ***r-defined operations
- Size: 384 x 127 x 208 mm
- Weight: Approx. 2.8 kg
- Power: 100~240 VAC 50/60Hz
- Power consumption: approx. 30 W
- Accessories: Power Cord (for 100 VAC), Probe (number of channels)
