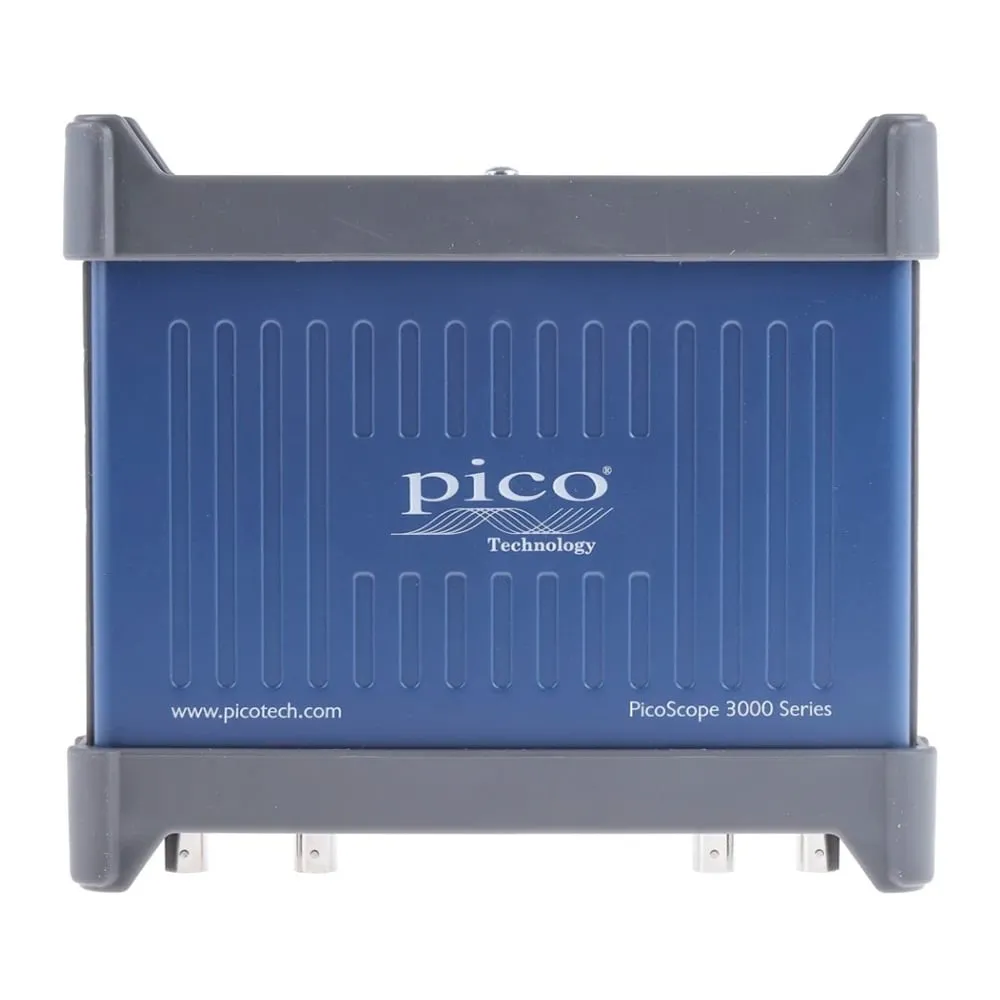

4-1698-01 PicoScope 3000 Series PC Oscilloscope 2Ch 50 MHz PicoScope 3203D
Product Description
Product Model: 4-1698-01Product Brand: Pico Technology […]
Contact Us
Product Details
Product Model: 4-1698-01
Product Brand: Pico Technology
Features
- The small, USB-connected PicoScope 3000 D is a fully portable test system.
- It can be connected to a laptop PC, so it can be ***d in many places.
- It comes standard with a number of advanced features such as calculation channels, statistics, spectrum analysis and automatic measurement with a color persistent display mode.
Spec
- Frequency band (MHz): 50
- Buffer Memory (MS): 64
- Number of Channels: Analog 2
- Input range: ± 20 mV to ± 20 V (Full Scale 10 Range)
- Input impedance: 1 MΩ
- Sampling rate: 1 GS/s
- Minimum vertical axis sensitivity: 4 mV/div
- Maximum vertical axis sensitivity: 4V/div
- Vertical resolution: 8 bit
- Output: Function generator, AWG 1 MHz
- Built-in arbitrary waveform generation function: sine wave, rectangular wave, triangular wave, DC, ramp waveform, sinc function, Gaussian function, sine half wave
- Size: 190 x 170 x 40 mm
- Weight: 0.5 kg
- power supply: powering from USB port
- Accessories: Passive Probe x 2 pieces, USB Cable, Quick Start Guide, Software, Reference CD
