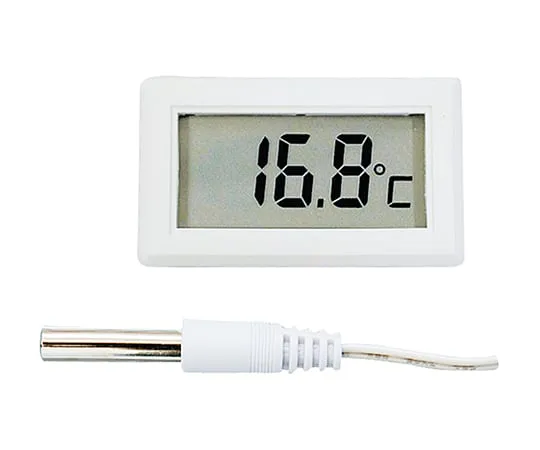

3-9771-01-56 Digital Temperature Module -40 to + 100℃ with English Calibration Certificate MT-140
Product Description
Product Model: 3-9771-01-56Product Brand: MOTHERTOOL CO […]
Contact Us
Product Details
Product Model: 3-9771-01-56
Product Brand: MOTHERTOOL CO., LTD.
Features
- It can be ***d to control the temperature of the insulation/cooling box and to install devices that require temperature display.
- Uses a thermistor sensor with excellent durability.
- Due to its small size, it can be incorporated into various devices.
Spec
- Measuring range (deg. C): -40 to + 100
- Resolution (degrees C): 0.1
- Accuracy: 0 ~ 40 degrees C/+/- 1 degrees C, Others/+/- 2 degrees C
- Material: ABS resin
- Detection method: Thermistor
- Sampling: Approx. 10 sec/time
- Power supply: 1 LR -44 button battery (1.5 V) (included for testing)
- Size: 48.2 x 16.8 x 28.7 mm
- Sensor cord length: 3 m
- Weight: 30 g
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
