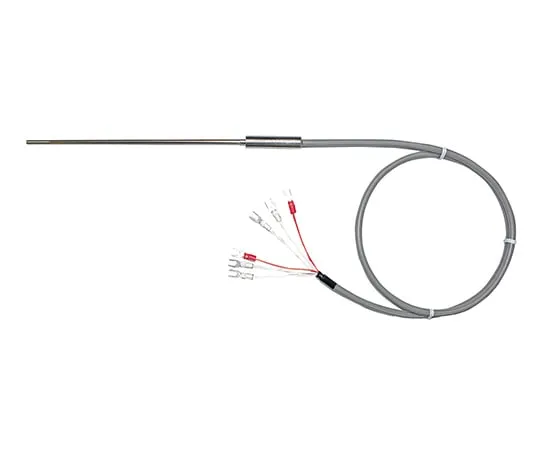

3-9390-01 Double Element Temperature Measuring Resistor φ4.8 x 200mm WPt4.8 x 200
model:
3-9390-01
category:
toner
Product Description
Product Model: 3-9390-01 Features One sensor has two te […]
Contact Us
Product Details
Product Model: 3-9390-01
Features
- One sensor has two temperature sensing sections, allowing two measurements at once.
- As it is a double element, it can be ***d for temperature display and control.
- It can also be ***d as a backup for critical areas.
- It can measure more precisely than a thermocouple.
Spec
- Sheath size (mm): φ4.8 x 200
- Measurement temperature range (℃): 200 ~ + 500
- Sensor Type: Pt 100 Ω (Class B)
- Sheath material: Stainless steel SUS316
- Lead wire coating: vinyl coating
- Lead wire length: 2m
