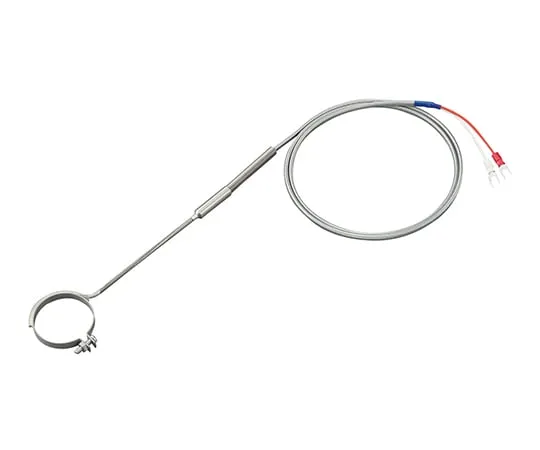

3-9389-01 Sheath Thermocouple (Ring Type) φ30mm -
model:
3-9389-01
category:
toner
Product Description
Product Model: 3-9389-01 Features The sheath can be ben […]
Contact Us
Product Details
Product Model: 3-9389-01
Features
- The sheath can be bent (not repeated).
- Stable measurement is possible by adhering to piping.
- Suitable for pipe measurement of wastewater, exhaust, molding machines, heating furnaces, etc.
Spec
- Ring size (mm): φ30
- Sheath size (mm): φ3.2 x 100
- Ring material: Stainelss steel SUS304
- Sheath material: Stainless steel SUS316
- Thermocouple type: K (Class 2)
- Measurement temperature range: 0 to: 500 ℃
- Lead wire coating: glass fiber coating
- Lead wire length: 2m
