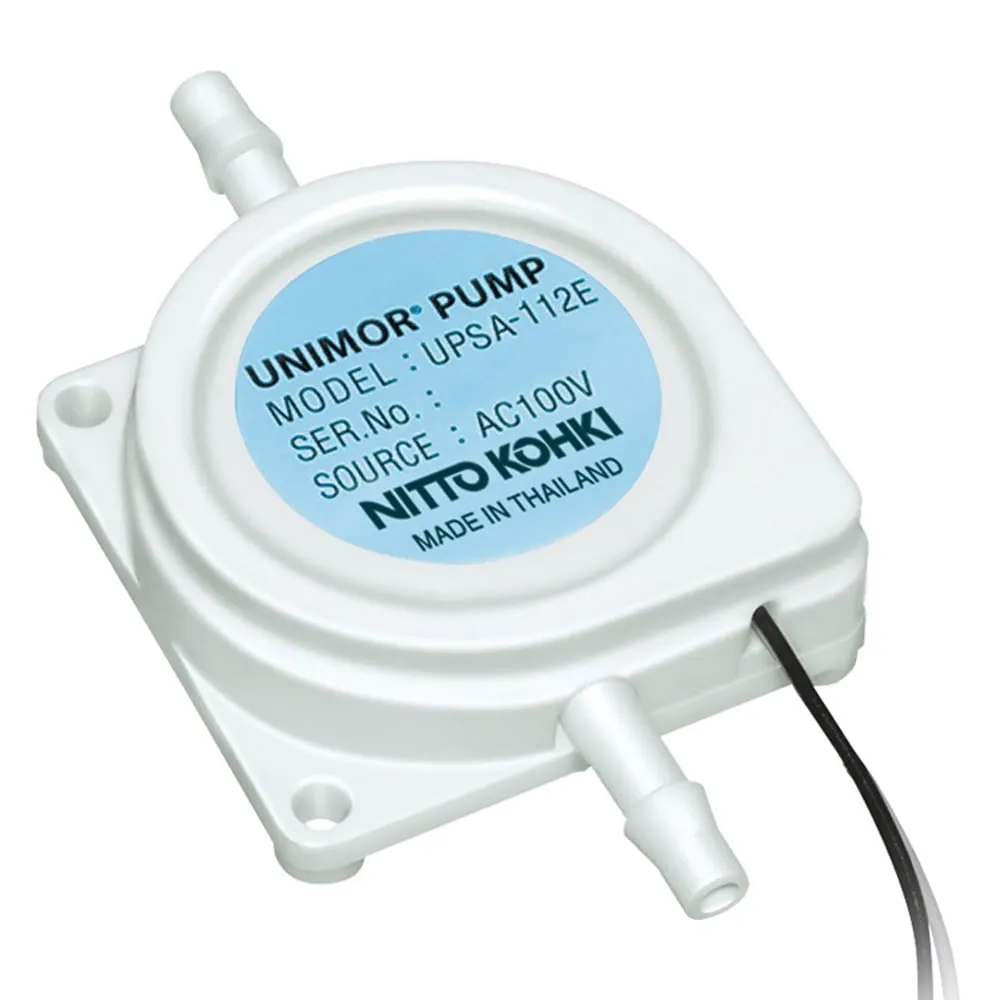

1-5999-31 Piezo-Piezo-Pump UPSA-112E
Product Description
Product Model: 1-5999-31Product Brand: NITTO KOHKI CO., […]
Contact Us
Product Details
Product Model: 1-5999-31
Product Brand: NITTO KOHKI CO., LTD.
Features
- It is compact and lightweight beca*** it is directly driven by a piezoelectric bimorph oscillator, and has a long service life and low operating noise without a motor or drive shaft like conventional pumps.
- It consumes very little current and produces no electromagnetic noise.
- It requires no priming and can suck even gaseous liquids.
Spec
- Maximum discharge (mL/min): 36
- Maximum pressure (kPa): 15
- Number of pieces: 1
- Material: Housing/PP, Wetted Sheet/PTFE, Check Valve/O-Ring/Ethylene Propylene Rubber
- Size: 35.5 x 35.5 x 14 mm (excluding nozzle)
- Self-priming force: 3 kPa (may decrease dep***ing on operating conditions)
- Nozzle Inhalation/Discharge: Outer diameter/phi4 mm (stopping phi5 mm), Inner diameter/phi2 mm
- Power supply: 100 VAC 50/60 Hz (without plug, with 50 mm lead wire)
- Current consumption: 3 mA
- Weight: 13.3 g
- Available chemicals: ammonia water, ethanol, dilute hydrochloric acid, caustic potash, caustic soda, methanol, etc.
