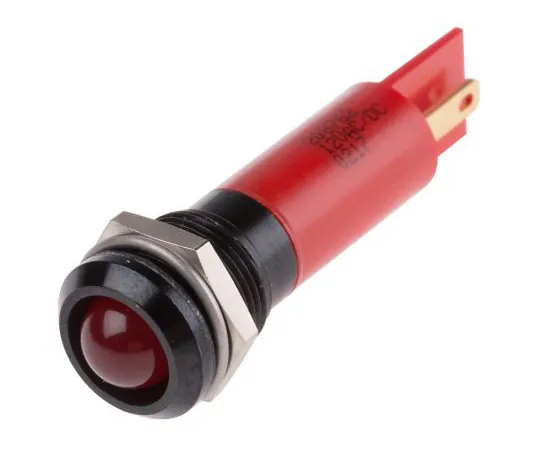

63-4586-46 RS PRO Red Indicator, 12 V, 12mm Mounting Hole Size, Solder Tab Termination, IP67 208-762
Product Description
Product Model: 63-4586-46Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4586-46
Product Brand: RS PRO
Features
- Fixed Nut, Washer, Gasket
- LED Indicator, 12 mm Mounted, 12/24 Vac/dc, 110/230 Vac
- Brought to you by RS Pro, this LED indicator has a solder lug terminal, chrome bezel and is sealed to meet IP67 rated intrusion protection. Ideal for harsh outdoor environments. The RS Pro LED indicator has high brightness and long life.
- Features and Benefits: Colored 8 mm Diff*** Polycarbonate Lens
- 14 mm Glossy Satin, Protruding Type
- Seal Structure of IP67 Grade
- Visible in Direct Sunlight
- 0.11 inch (2.8 x 0.8 mm) Terminal
Spec
- Light Output Colour:Red
- Mounting Hole Size:12mm
- Lamp Type:LED
- Termination Type:Solder Tab
- IP Rating:IP67
- Bezel Style:Prominent
- Current Rating:20mA
- Intensity:100mcd
- Length:56mm
- CODE No.:208-762
