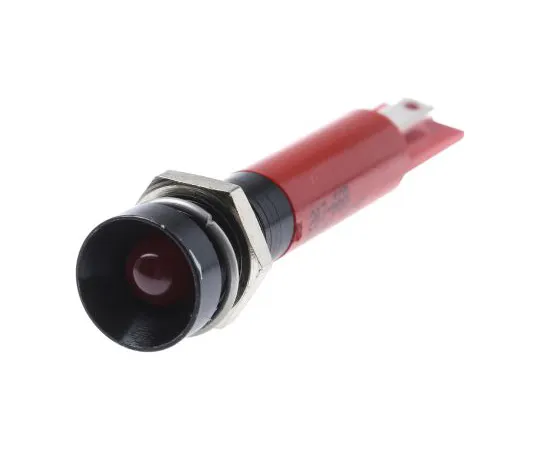

63-4586-13 RS PRO Red Flashing LED Indicator, 24 V dc, 8mm Mounting Hole Size, Solder Tab Termination 207-668
Product Description
Product Model: 63-4586-13Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4586-13
Product Brand: RS PRO
Features
- Fixed Nut, Washer
- LED Indicators, 12/24 Vdc, Black Chrome Bezel
- These LED indicators, delivered by the trusted RS Pro, feature a diff*** epoxy lens and chrome bezel.
- The body has a convenient solder lug terminal for quick and easy connection.
- The RS Pro LED indicators are very bright, long-life, and low power consumption, making them suitable for a variety of equipment applications.
- ; 5mm Color Diffusion Epoxy Lens; Length: 37 mm; Estimated life: 100,000 hours; Operating temperature range: -25→+75°C; The three-color type has red and green LEDs, which emit yellow when red and green light up at the same time.; 0.11 inch (2.8 x 0.8) terminal, 3 color type only 2 x 0.5 mm; The gold faston terminal indicates the anode (+) and the silver terminal indicates the cathode (-)
Spec
- Voltage Rating:24V dc
- Light Output Colour:Red
- Mounting Hole Size:8mm
- Lamp Type:Flashing LED
- Termination Type:Solder Tab
- Bezel Style:Recessed
- Current Rating:20mA
- Intensity:50mcd
- Length:34.8mm
- CODE No.:207-668
