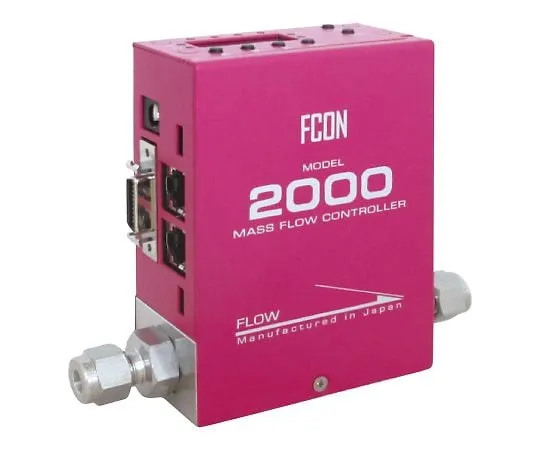

4-1551-01 Digital Mass Flow Controller (Display setter integrated type) 500 SCCM Air C2005
Product Description
Product Model: 4-1551-01Product Brand: FCON Features It […]
Contact Us
Product Details
Product Model: 4-1551-01
Product Brand: FCON
Features
- It has a display setting function and can be set and controlled by the unit only.
- The driving power supply is a 24 VDC single power supply (AC adapter available).
- Digital communication: Equipped with RS 485 communication function.
- It is equipped with an accumulation function and a flow rate abnormal upper and lower limit alarm function.
Spec
- Full-Scale flow rate: 500 SCCM
- Compatible Gas: Air
- flow rate setting: Main Unit Display Configurator/Event Output Switching, Digital/RS 485, Analog/0 to 5 VDC/4.3 to 20 mA
- flow rate Accuracy : ± 1% FS (Accuracy Assurance Range 15 to 35 ° C)
- Response time: < 2 sec
- Controlled flow rate Range: 2 to 100% FS
- flow rate output signal: 7-segment LED Digital/RS 485, Analog/0 to 5 VDC/4 to 20 mA
- Valve Type: NC (normal close)
- Reproducibility: ± 0.2% FS
- capacity to resist pressure : 1 MPa
- External Leak: 1 x 10 ^ -7 Pa · m3/secHe
- Gas Contact Part: SUS316, PTFE, Fluororubber
- Sealing Part material: Fluorine Rubber
- Standard connected fittings: 1/4 inSWL (equivalent goods)
- Guaranteed Service Temperature: 5 to 50 ° C
- Supply power supply voltage/consumption current: 24 VDC/500 mA or more
- Communication type: Digital/RS 485, Analog/0 to 5 VDC/4 to 20 mA
- Size: 127 x 38 x 100 mm
- *When ordering, please specify the gas in the gas code table.
