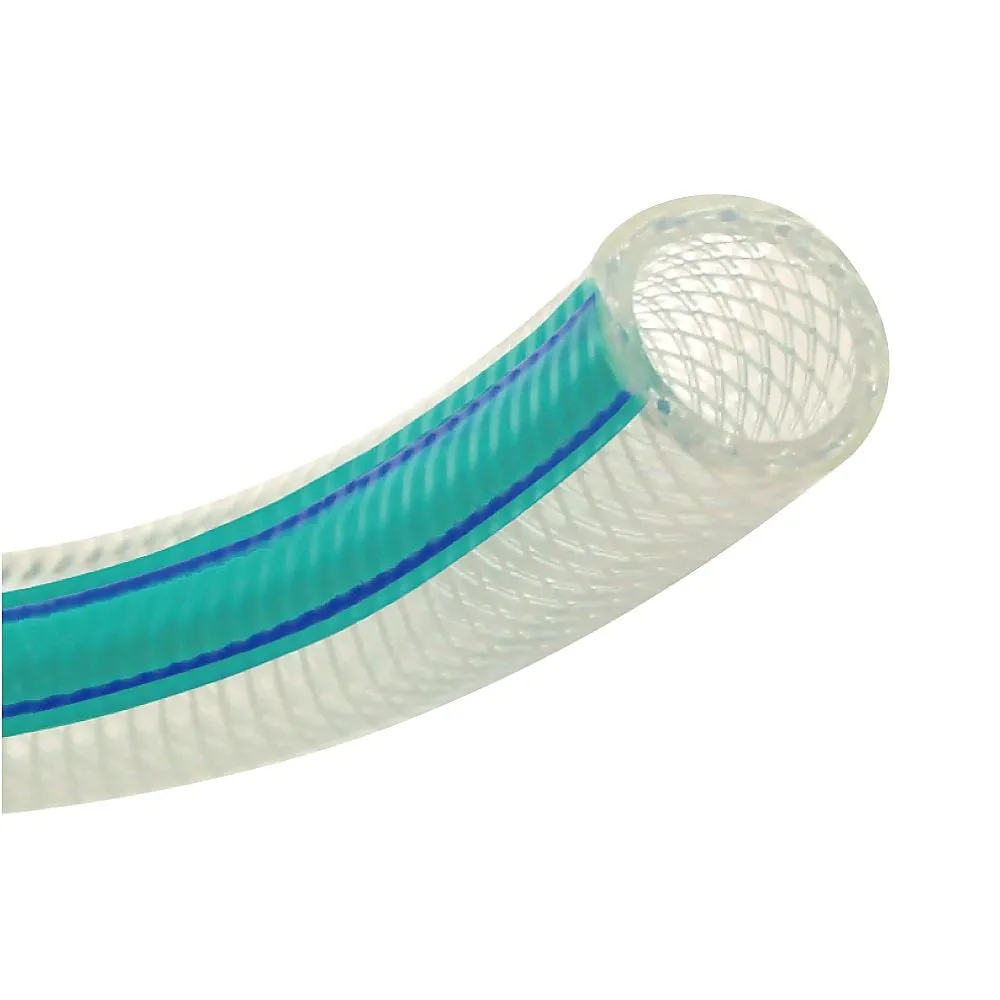

65-0862-04 Hybrid Hose for transportation of various foods, drinking water, etc. HTF-15-1
Product Description
Product Model: 65-0862-04Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0862-04
Product Brand: TOYOX CO., LTD.
Features
- "Main application": For transportation of food, beverages, oils and fats, etc. "Food compatible": Uses non-phthalic acid plasticizer for food, beverages, oils and fats. Pressure resistant blade hose for pressure feeding made of soft vinyl chloride.
- Heat-Resistant Blade Hose: Heat-Resistant Pressure Resistant Blade Hose that can be safely ***d up to 70°C
- Shape Retaining: Blade hose with a structure that resists hose breakage and collapse compared to general blade hose allows for compact piping.
- Oil-Resistant: This is a pressure resistant hose that complies with the Food Sanitation Law, prevents the hose from becoming hard even with fatty foods, is safe, and has a long life.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196)
- Compliance with Standards: Compliance with RoHS2 (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 15 x 22
- Pressure (Mpa): 0 to 0.8
- Operating temperature range: -5 to 70 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Thread, Special PET Plastic
- Minimum b***ing radius: 70 mm
