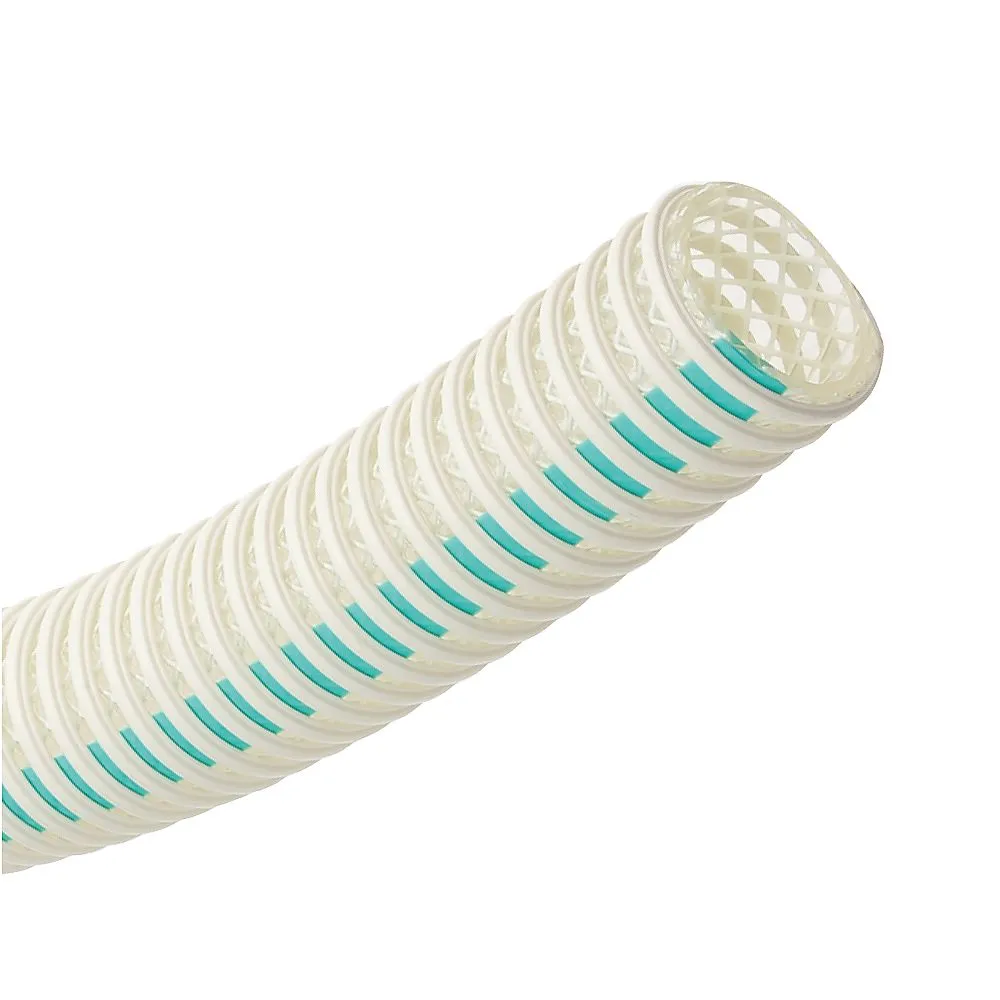

65-0858-18 Hybrid for transportation of various foods, drinking water, etc. Foods N-Hose HTFN-50-1
Product Description
Product Model: 65-0858-18Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0858-18
Product Brand: TOYOX CO., LTD.
Features
- "Main application": For transport and suction of food, beverages, oils and fats, etc. "Food compatible": Uses non-phthalic acid plasticizer for food, beverages, oils and fats. Pressure resistant hose for pressure feeding and vacuum (suction) made of soft vinyl chloride.
- Oil-Resistant: This is a pressure resistant hose that complies with the Food Sanitation Law, prevents the hose from becoming hard even with fatty foods, is safe, and has a long life.
- Hygienic: This is a pressure resistant hose for suction and pressure feeding that does not worry about rust beca*** the reinforcing material in the hose is not metal but resin coil reinforcement.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196)
- Compliance with Standards: Compliance with RoHS2 (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 50.8 x 64.5
- Pressure (Mpa): -0.1 to 0.5 (23 °C), -0.05 to 0.25 (50 °C)
- Operating temperature range: -5 °C to 50 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Thread, Hard vinyl chloride
- Minimum b***ing radius: 260 mm
