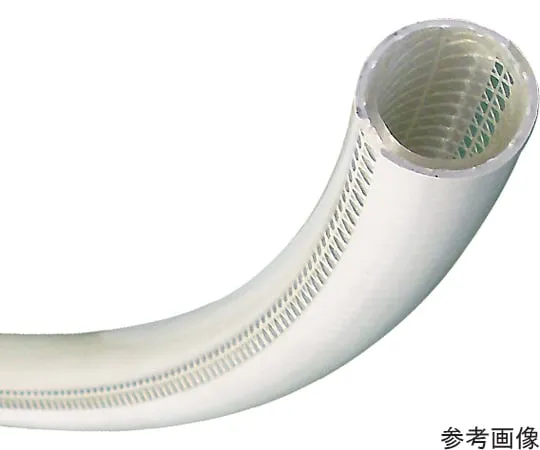

65-0857-40 Toyo Signal Hose for Factory Equipment Piping and Various Mechanical Piping TSG-15-1
Product Description
Product Model: 65-0857-40Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0857-40
Product Brand: TOYOX CO., LTD.
Features
- "Main Application": Factory Equipment/Mechanical Piping for High Pressure Feed
- Pressure resistant blade hose with higher pressure resistance than conventional pressure resistant hose.
- Multi-purpose pressure resistant blade hose that can be ***d stably for a wide range of fluids such as water, air, oil and chemicals.
- Compliance with RoHS2 revised regulations (as of October 2021).
- Cannot be ***d for suction.
Spec
- Inner diameter x Outer diameter (mm): 15 x 22
- Pressure (Mpa): 0 to 1.5
- Operating temperature range: -5 to 60 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Polyester Yarn
- Minimum b***ing radius: 80 mm
Related product recommendations
You may also be interested in the following products
automaticdiluter

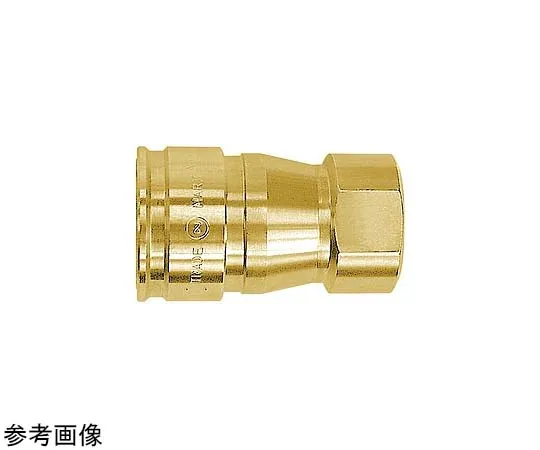

65-9010-45 ［Discontinued］High Flow Coupler R1/2 Brass Socket HFL-4S-BRS-F
model: 65-9010-45
brand: NITTO KOHKI CO., LTD.
automaticdiluter
65-0884-80 Fluororesin PFA Tube phi 10 x phi 8 1m (Cut) NSP66-10X8-1
model: 65-0884-80
brand: GUNZE LIMITED
automaticdiluter

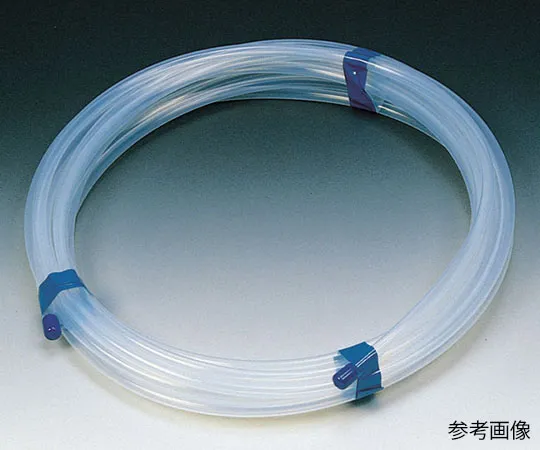

63-5750-81 ［Discontinued］NSP Fluororesin PFA Tube phi 4 x phi 3 1m (Cut) NSP-4X3-1
