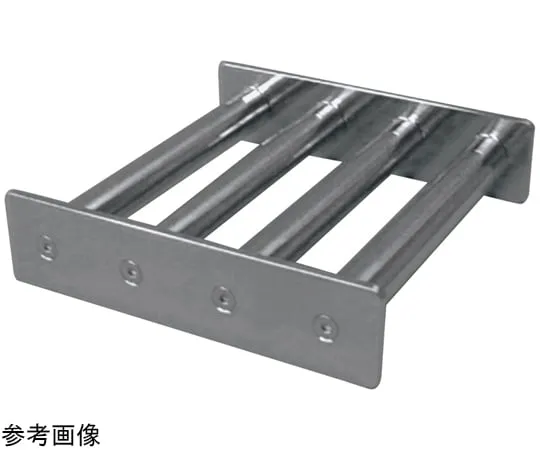

67-4591-03 Rectangular Grid Magnet for Resin Molding Machine Dimension W (mm): 150 Dimension L (mm): 150 Number: 3 SMGPK150
Product Description
Product Model: 67-4591-03Product Brand: SUPER TOOL Co., […]
Contact Us
Product Details
Product Model: 67-4591-03
Product Brand: SUPER TOOL Co., Ltd.
Features
- Stronger magnets are arranged in a grid shape and installed in a square hopper, etc., to adsorb and supplement fine iron powder, etc., while pellets and powder particles are falling.
Spec
- Dimension W (mm): 150
- Dimension L (mm): 150
- Dimension H (mm): 50
- Number: 3
- Pipe diameter (mm): phi 22
- Pipe Diameter Material: SUS304
- Flat Bar Finish: Pickling
- Flat Bar Material: SUS304
- Operating environmental temperature (°C): < 80
- Surface maximum magnetic flux density (T (G)): 0.4 (4000)
