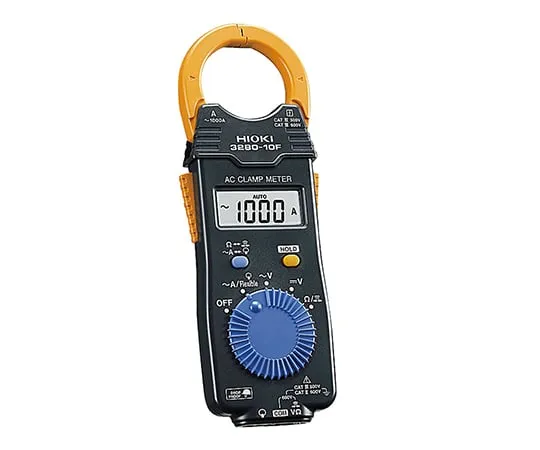

3-9319-01 AC Clamp Meter Average Rectifier Type 3280-10F
Product Description
Product Model: 3-9319-01Product Brand: HIOKI E. E. CORP […]
Contact Us
Product Details
Product Model: 3-9319-01
Product Brand: HIOKI E. E. CORPORATION
Features
- Since it is thin, complicated wiring can be easily clamped.
- Drop-proof type that can withstand a drop of 1 meter.
Spec
- Specification: average rectifier type
- AC current measurement range: 41.99/420.0/1000 A
- AC current measurement accuracy: ±1.5% rdg ±5dgt
- AC voltage measurement range: 4.199 V to: 600 V (4 range)
- AC voltage measurement accuracy: ±1.8% rdg ±7dgt
- DC voltage Measurement range: 419.9 mV to : 600 V (5 Range)
- DC voltage measurement accuracy: ±1.0% rdg ±3dgt
- Resistance measurement range: 419.9 Ω; to: 41.99 MΩ (6 Range)
- Accuracy of resistance measurement: ±2.0% rdg ±4dgt
- Frequency band: 50/60Hz
- Measurable conductor diameter: φ33mm
- Function: Buzzer sound (50 ±40 Ω or less), data hold auto power off
- Power supply : Coin-operated lithium battery (CR 2032) x 1 piece (test attachment)
- Continuous ***: about 120 hours
- Dustproof waterproof: IP 40
- Size: 57 x 16 x 175mm
- Weight: 100g
