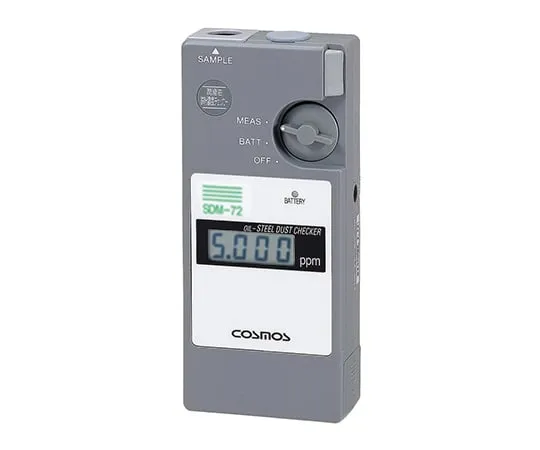

3-9318-01 Iron Powder Densitometer (Grease Iron Powder Densitometer) SDM-72
Product Description
Product Model: 3-9318-01Product Brand: New Cosmos Elect […]
Contact Us
Product Details
Product Model: 3-9318-01
Product Brand: New Cosmos Electric Co., Ltd.
Features
- By measuring the metal wear powder contained in the grease in the bearing, the wear condition before failure can be confirmed.
- Suitable for bearing diagnosis of low speed rotating machines and variable rotating machines.
- Since only sample grease is inserted, field measurement is possible.
Spec
- Specification: Grease iron powder densitometer
- Size (mm): 84 x 40 x 190
- Detection principle: Magnetic balance electromagnetic induction method
- Detection target: iron powder concentration in grease
- Detection range: 0 to 5.0% (Wt)
- Minimum Resolution: 0.001% (Wt)
- Sample volume: about 0.8 mL
- Power supply : AA size Alkali battery x 4 pieces (test attachment)
- Continuous operation time: about 30 hours * When using alkaline battery at 25 ℃
- Operating temperature range: 0 to 40 ℃
- Weight: about 500g
- Accessories: Carrying case, spatula for collecting grease, grease sample case x 10 pieces
