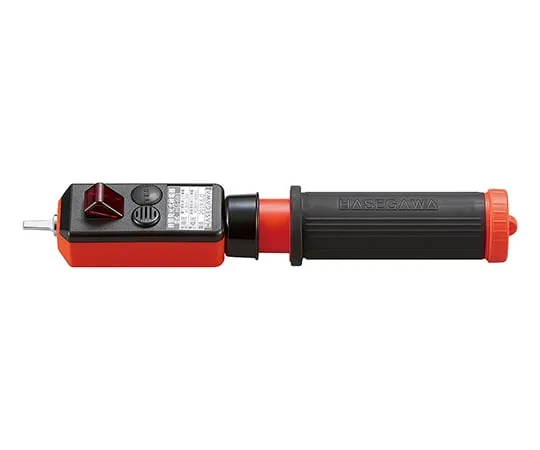

3-9201-01 Voltage Checker For High And Low Pressure φ34 x 216 - 746mm HSS-6B1
Product Description
Product Model: 3-9201-01Product Brand: HASEGAWA Electri […]
Contact Us
Product Details
Product Model: 3-9201-01
Product Brand: HASEGAWA Electric Co., Ltd.
Features
- It is suitable for patrolling the electrical equipment.
- High voltage can be detected at a safe distance.
Spec
- Size (mm): φ34 x 216 to 746
- Voltage range: High voltage/AC3 to 7 kV, Low voltage/AC 80 to 600 V
- Frequency: 50/shared by 60Hz
- rating operation start voltage : High voltage/300 V (exposed charging section) , 1500 V (insulation electric wire φ5mm OC Line) , Low voltage/80 V (exposed charging section)
- Action display: Light emission (red Intermittent Illumination), pronunciation (intermittent sound)
- Power supply : LR 44 alkaline button battery x 2 pieces (test attachment)
- Weight: about 130g
