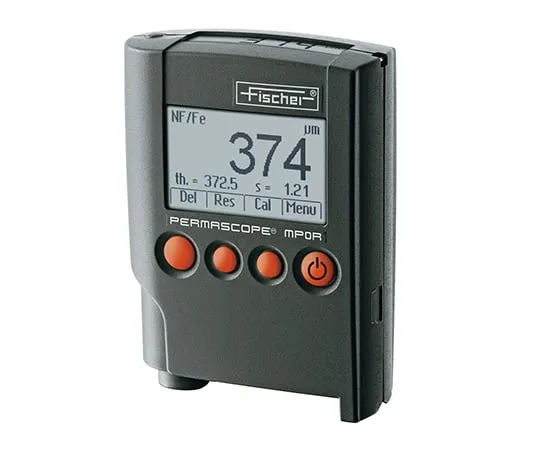

3-9059-01 Pocketable Small Film Thickness Meter Built-in Probe Type PERMASCOPE® MP0R
Product Description
Product Model: 3-9059-01Product Brand: FICHER INSTRUMEN […]
Contact Us
Product Details
Product Model: 3-9059-01
Product Brand: FICHER INSTRUMENTS
Features
- Built-in electromagnetic probe suitable for measuring non-magnetic film on magnetic metal substrate (Cu on Fe, insulating film, paint, etc.).
- The eddy current method is suitable for measuring non-magnetic coatings on non-magnetic metals (such as aluminum, copper, stainless steel insulation coatings, paints, etc.).
Spec
- Measuring method: Electromagnetic
- Specification: Integrated Probe
- Measurement method: electromagnetic
- Probe: built-in type
- PC connection: USB 2.0
- Measuring range: 0 to 2500 μm
- Measurement accuracy (electromagnetic): ±0.3 μm or less (0 to 100 μm), ±0.3% or less (100 to 2500 μm)
- Measurement accuracy (eddy current system): -
- Measurement value records: 10,000
- Measuring object: nonmagnetic film/magnetic metal base
- Main unit size: 64 x 30 x 85mm
- Weight: 137g
- Power supply : AA size battery x 2 pieces (test attachment)
- Accessories: Standard plate, body cover, storage case
