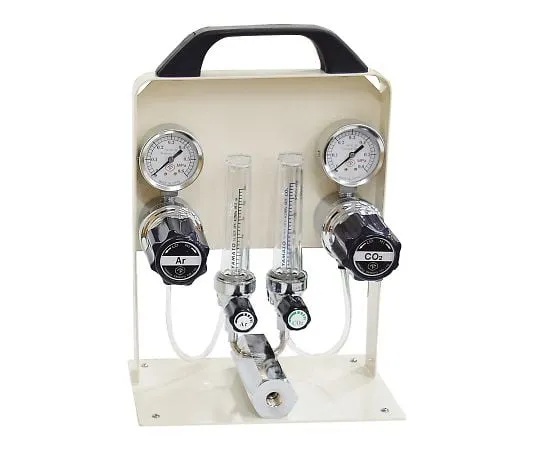

3-9057-01 Small Gas Mixer Mick Boy MB-O225/Ar25
Product Description
Product Model: 3-9057-01Product Brand: YAMATOSANGYO Fea […]
Contact Us
Product Details
Product Model: 3-9057-01
Product Brand: YAMATOSANGYO
Features
- Various mixed gases can be easily produced.
- Beca*** the equipment is exposed, maintenance is easy.
- *High flow rate type (maximum scale value: 25L/min (H2 gas: up to 30L/min)) can also be manufactured. Please contact us.
- *O2 + H2 gas mixers cannot be manufactured.
Spec
- Mixed gas name: O2 + Ar
- maximum flow rate (L/min): 25
- pressure of *** : 0.2MPa
- Inlet pressure: 0.5 to 3MPa
- Exit Pressure: 0.2MPa
- Entrance connection: Rc 1/4
- Mixing accuracy: ±5% (Full Scale)
- flow rate accuracy: ±2.5%
- Material : brass
- Main unit size: 220 x 147 x 299mm
- Weight: 4.6kg
