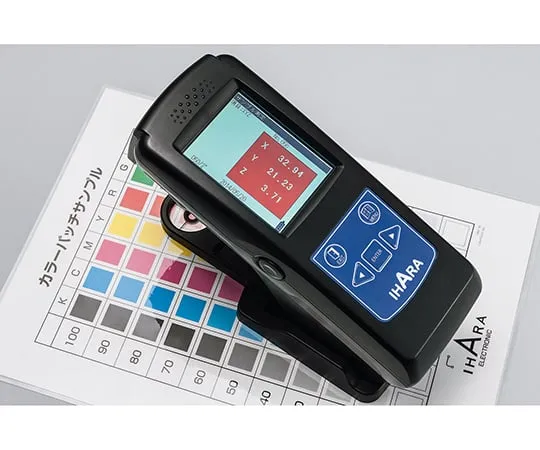

3-8678-01 Spectrophotometer - Densitometer 204 x 80 x 80mm S300
Product Description
Product Model: 3-8678-01Product Brand: Ihara Electronic […]
Contact Us
Product Details
Product Model: 3-8678-01
Product Brand: Ihara Electronic Industries
Features
- By measuring with the approximate color display of the measuring point, it is possible to visually confirm the measuring point.
- It also supports pass/fail judgment in the printed circuit board field such as color management of substrates and resist/silk.
Spec
- Size (mm): 204 x 80 x 80
- Weight (g): about 650
- Light: LED
- Repeatability: △ E * ab ≦ 0.05
- Language: Japanese/English
- Display: 320 x 240 dots, color graphic LCD
- Spectrometer: transmission grating
- Measuring wavelength: 400 to 700 nm (5 nm interval )
- Stored data: 400 data
- Integrated battery Li-ion battery (3.7 V -3,200 mAh)
- Viewing angle conditions: 2 °, 10 °
- Equipment difference: within △ E * 0.3
- Concentration conditions: M0 (A light source) and M1 (D 50 Light Source)
- Charge time: about 3 hours (Measurements per charge: about 1,000)
-
- *AC Adapter (DC 5 V -2 A AC100V to 120 V)
- *USB cable
- *hard case
- *Dedicated software (Supported OS: Windows (R) 2000/XP/Vista/7/8)
- *white calibration plate
- *zero cap
- *instruction manual
