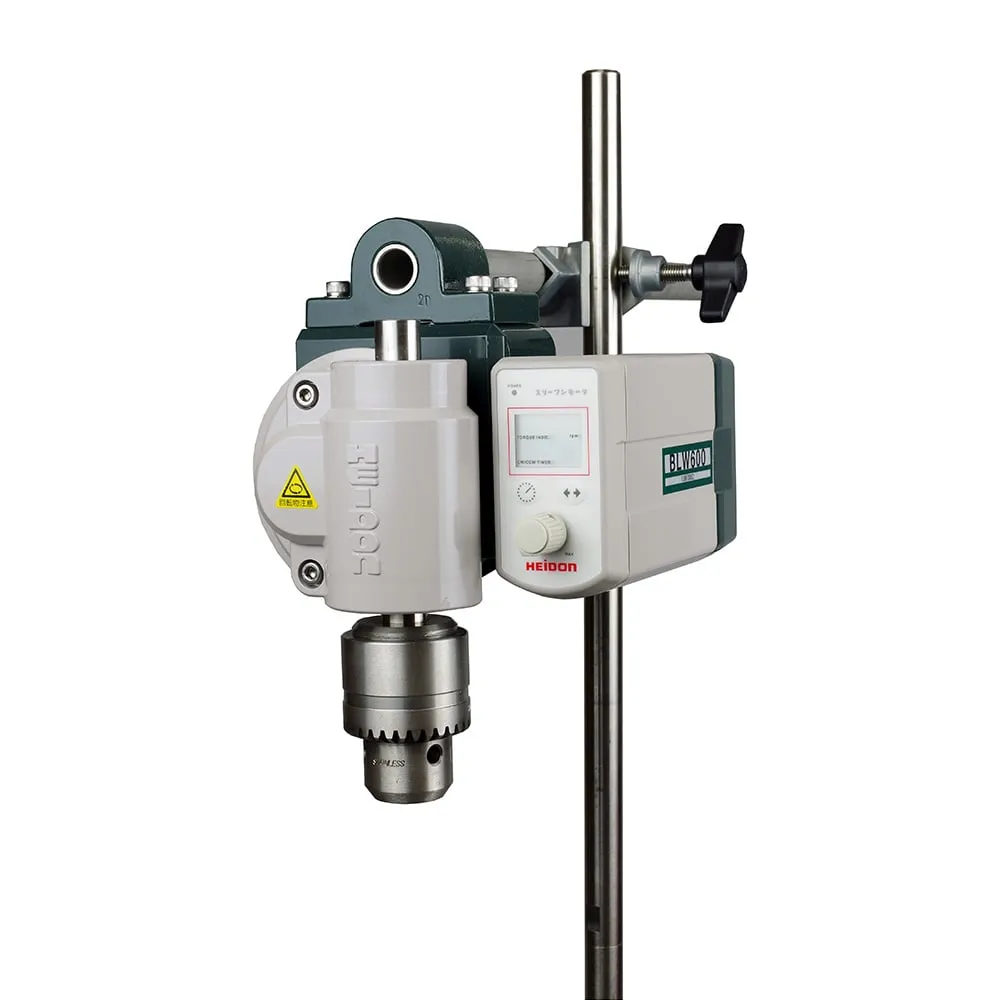

1-4956-01-22 Three-One-Motor with Pre-shipment Inspection Document BLW300
Product Description
Product Model: 1-4956-01-22Product Brand: THREE-ONE MOT […]
Contact Us
Product Details
Product Model: 1-4956-01-22
Product Brand: THREE-ONE MOTOR
Features
- Uses a high-performance 120 W brushless motor for high viscosity stirring.
- Equipped with a restraint protection circuit that automatically stops the motor when the stirring shaft sticks.
Spec
- Speed: 10~300rpm
- Rated torque: 4.5 N · m/45.0kgf · cm
- Motor: DC Brushless Motor Type B Insulated (130°C) 120 W
- Rotation Control: Feedback Control/Normal/Reverse Rotation Switching (Timer Mode/Manual)
- Forward/reverse timer: 5, 10, 20, 30, 45, 60sec Setting can be switched.
- Display: Speed Digital 4 Digits/Overload Display Torque Indicator (1 Scale 20%)
- Chuck: Drill Chuck for φ13 mm
- Thermal protector: motor coil temperature 90°C
- Size: 158 x 205 x 218 mm
- Power supply: Single phase 100 V±10% 50/60Hz 400VA
- Power Cord Length: 2 m (with 2-Pole Ground Plug)
- Weight: 5.0 kg
- With Clamp Holder (21 x 16)
- Compatible with High Viscosity
- *Stand, shaft and stirring blade are not included.
- *It can be custom made such as ext***ing the power cord. Please contact us.
- Check items: Actual measurement speed, timer operation, forward/reverse rotation changeover (Since there is no accuracy, check at more than the rated speed.)
