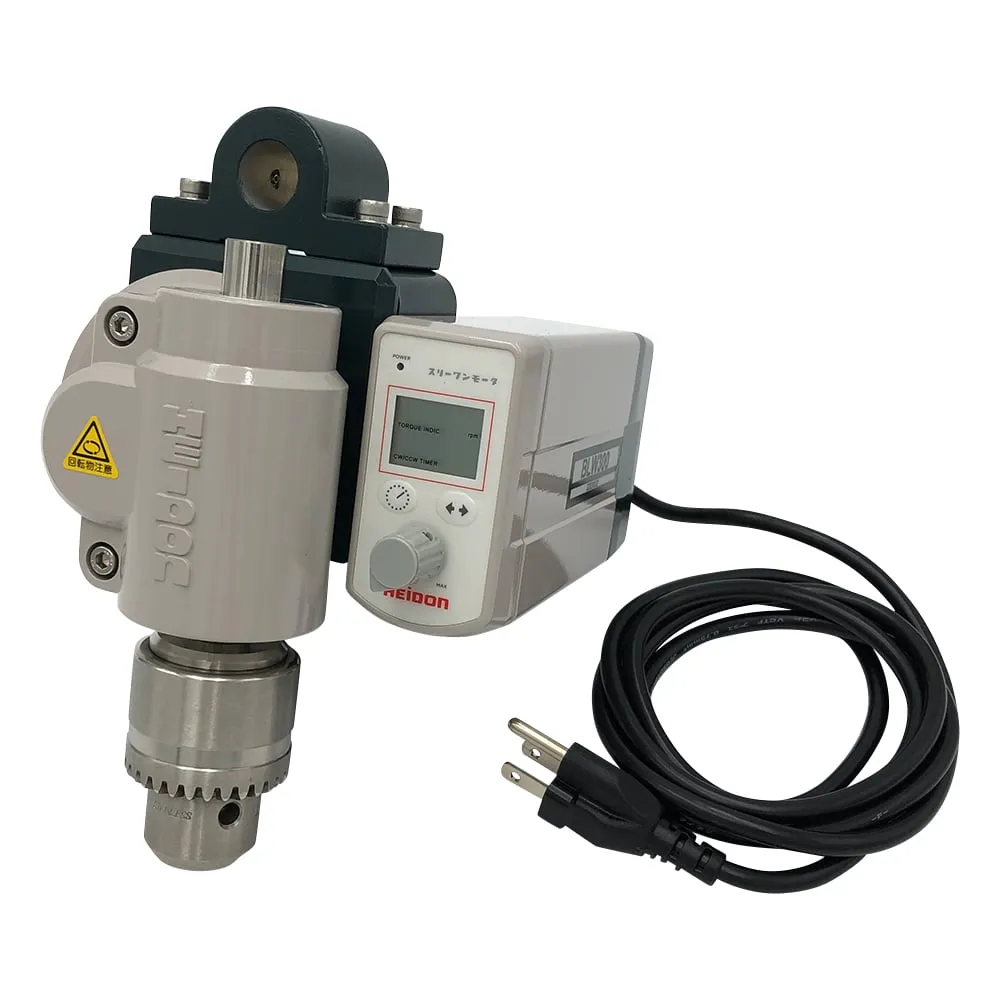

1-4956-01 Three-One-Motor BLW300
Product Description
Product Model: 1-4956-01Product Brand: THREE-ONE MOTOR […]
Contact Us
Product Details
Product Model: 1-4956-01
Product Brand: THREE-ONE MOTOR
Features
- Uses a high-performance 120W brushless motor for high-viscosity stirring.
- It is equipped with a restraint protection circuit that automatically stops the motor if the stirring shaft is stuck.
Spec
- Model number: BLW300
- Rotation speed: 5 - 300rpm
- Torque: 4.5N･m/45.0kgf･cm
- Motor: DC brushless motor, class B Insulation (130℃) 120W
- Rotation Control: Feedback control, forward/reverse switching (timer mode, manual)
- Forward and reverse rotation timer: Setting switchable to 5, 10, 20, 30, 45, and 60 seconds
- Display: Rotation speed digital 4 digits, overload display, torque indicator (1 scale 20%)
- Zipper: Drill chuck for φ13mm
- Thermal protector: Motor coil temperature 90℃
- Size: 160 x 259 x 244mm
- Power supply: Single phase 100V +/- 10%, 50/60Hz, 400VA
- Power cord length: 2m (with 2 poles ground type plug)
- Weight: 5.8kg
- With clamp holder (21 x 16)
- High viscosity supported
- *Stand, shaft, stirring blade are not included in the package.
