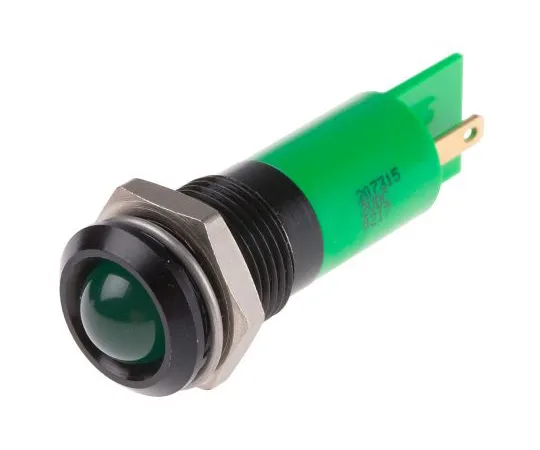

63-4586-01 RS PRO Green Indicator, 2 V dc, 14mm Mounting Hole Size, Solder Tab Termination 207-315
Product Description
Product Model: 63-4586-01Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-4586-01
Product Brand: RS PRO
Features
- Fixed Nut, Washer
- LED Indicator, 14 mm Mounted
- Brought to you by the trusted RS Pro, this LED indicator features an embedded diffusion epoxy style lens and a protruding bezel. This indicator has a compact and robust body and is easily mounted with a solder tab. Low power consumption, long life, and suitable for various equipment needs.
- Features and Benefits: 10 mm Color Diffusion Epoxy Lens
- 16 mm Chrome Bezel
- 0.11 inch (2.8 x 0.8 mm) Crimp Terminal
- 2.8 x 0.8 Insulated Crimp/Cable Assembly, 300 mm Long, Available with Red or Black Cable
- Estimated Life: 60,000 hours
- Operating Temperature: -20→+70°C
Spec
- Voltage Rating:2V dc
- Light Output Colour:Green
- Mounting Hole Size:14mm
- Lamp Type:LED
- Termination Type:Solder Tab
- Bezel Style:Prominent
- Current Rating:20mA
- Intensity:40mcd
- Length:47mm
- CODE No.:207-315
