Features

• Description

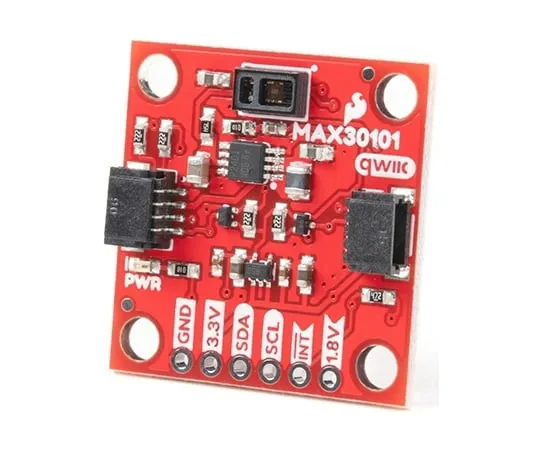

• The SparkFun Photodetector Breakout is an updated version of the SparkFun Particle Sensor Breakout includes the MAX30101, a highly sensitive optical sensor and successor to the MAX30105 and MAX30102. The MAX30101 Breakout utilizes a photon detector to measure the amount of returning light that is reflected back from the LEDs. This is ***ful for various applications like particle(
• i.e. smoke
• )detection, proximity measurements, and even photoplethysmography. To make it even easier to *** this breakout, all communication is enacted exclusively via I2C, utilizing our handy Qwiic system. However, we still have broken out 0.1" spaced pins in case you prefer to *** a breadboard.
• For more accurate and reliable biometric readings, we recomm*** the SparkFun Pulse Oximeter and Heart Rate Sensor, which utilizes proprietary algorithms programmed on the MAX32664 Biometric Sensor Hub.
• Our products are
• NOT
• int***ed to diagnose or treat any conditions and in life saving applications.
• The SparkFun Qwiic connect system is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards *** a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
• Get Started with the MAX30101 Photodetector Breakout Guide
• Features
• 1"×1"(2.54×2.54 cm)Qwiic Breakout Board
• MAX30101 Sensor
• Integrated Cover Glass for Optimal, Robust Performance
• Ultra-Low Power Operation
• Built-in photodetector and red, IR, and green LEDs in a single package
• PWM control of individual LED channels
• 18-bit ADC resolution
• 10.24 MHz sample rate
• Data rate up to 3200 sps
• FIFO(First In, First Out)queue with a 32 element data buffer
• Integrated temperature sensor.
• 0.0625°C resolution
• I2C Address:0x57
• (7-bit)
• Onboard 1.8V Regulation and 5V Step-up DC/DC Converter
• 4×0.13" Mounting Holes
• Compatible with M3 screws
• 2 Qwiic Connectors
• 6 Breakout Pins
