• Description

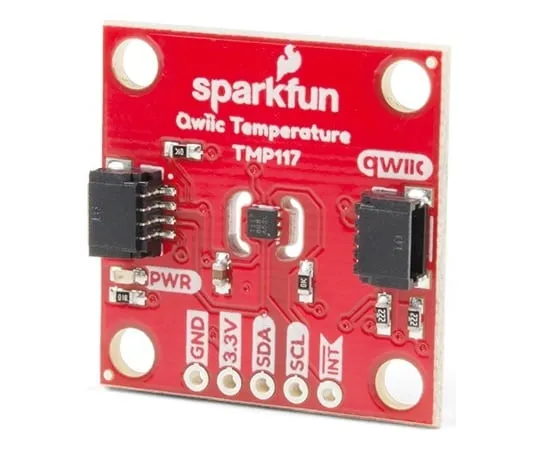

• The SparkFun Qwiic TMP117 breakout is a high precision temperature sensor equipped with an I2C interface. It outputs temperature readings with high precision of ±0.1°C across the temperature range of -20°C to +50°Cs with no calibration and a maximum range from -55°C to 150°C. The SparkFun High Precision Temperature Sensor also has a very low power consumption rate which minimizes the impact of self-heating on measurement accuracy. Utilizing our handy Qwiic system, no soldering is required to connect it to the rest of your system. However, we still have broken out 0.1"-spaced pins in case you prefer to *** a breadboard.
• The SparkFun High Precision Temperature Sensor also includes programmable temperature limits, and digital offset for system correction. While the TMP102 is capable of reading temperatures to a resolution of 0.0625°C and is accurate up to 0.5°C, the on-board TMP117 is not only more precise but has a 16-bit resolution of 0.0078°C!
• To make this breakout even easier to ***, we've written an Arduino library to **** you get started "Qwiic-ly." Check the Documents tab above for more information.
• The SparkFun Qwiic Connect System is an ecosystem of I2C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards *** a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can't hook it up wrong.
• The TMP117 High Precision Temperature Sensor can also be automatically detected, scanned, configured, and logged using the OpenLog Artemis datalogger system. No programming, soldering, or setup required!
• Need a custom board? This component can be found in SparkFun's A La Carte board builder. You can have a custom design fabricated with this component - and your choice of hundreds of other sensors, actuators and wireless devices - delivered to you in just a few weeks.
• Get Started with the SparkFun High Precision TMP117 Hookup Guide
• Features
• Uses I2C interface(Qwiic-enabled)
• Four selectable addresses
• 0x48(default), 0x49, 0x4A, 0x4B
• 16-bit resolution, 0.0078°C
• High accuracy, digital temperature sensor
• ±0.1°C(max)from ?20°C to 50°C
• ±0.15°C(max)from ?40°C to 70°C
• ±0.2°C(max)from ?40°C to 100°C
• ±0.25°C(max)from ?55°C to 125°C
• ±0.3°C(max)from ?55°C to 150°C
• Operating temperature range
• -55°C to +150°C
• Operating voltage range
• 1.8V to 5.5V
• Typically 3.3V if using the Qwiic cable
• Low power consumption
• 3.5μA(1-Hz conversion cycle)
• 150nA(shutdown current)
• Programmable operating modes
• Continuous, one-shot, and shutdown
• Programmable temperature alert limits
• Selectable averaging for reduced noise
• Digital offset for system correction
• NIST traceability
• Documents
• Schematic
• Eagle Files
• Board Dimensions
• Hookup Guide
• Datasheet(TMP117)
• Arduino Library
• GitHub Hardware Repo
