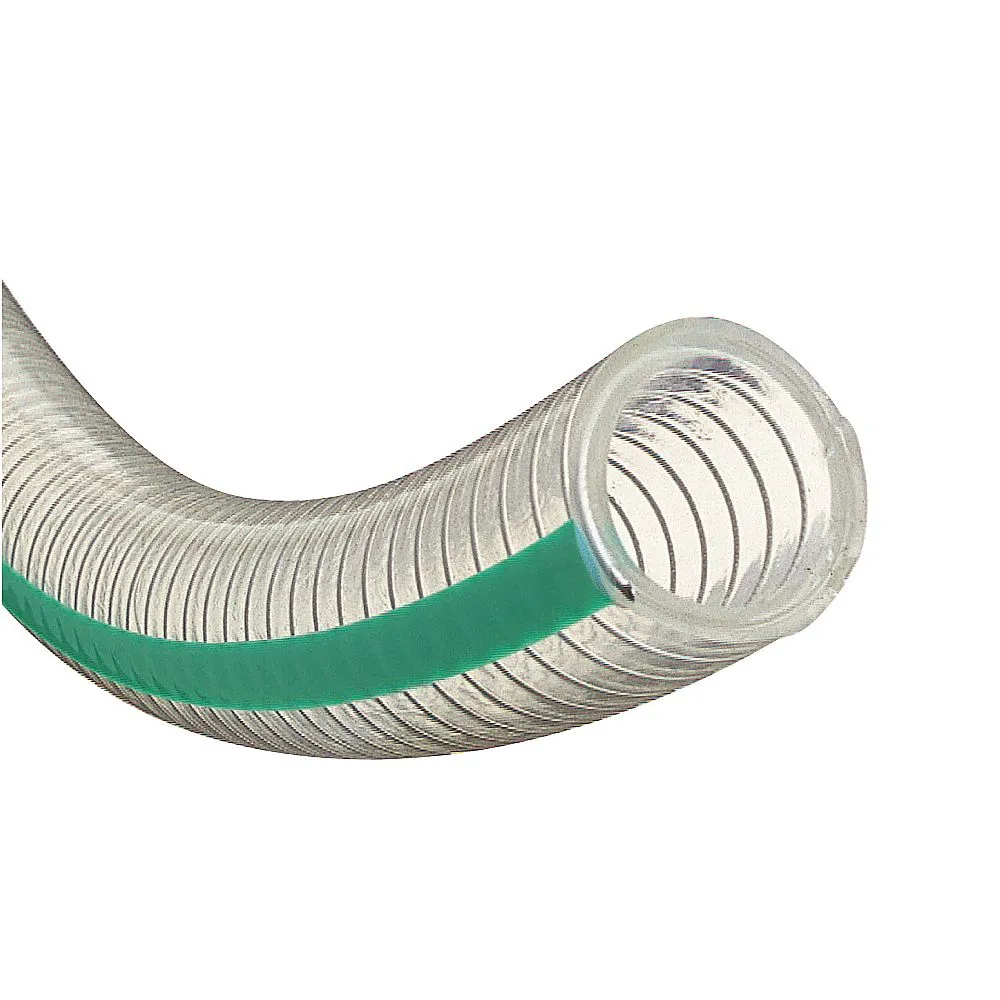

65-0856-83 Toyo Foods S-Hose For transportation of various foods, drinking water, etc. TFS-100-1
Product Description
Product Model: 65-0856-83Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0856-83
Product Brand: TOYOX CO., LTD.
Features
- "Main application": For transport and suction of food, beverages, oils and fats, etc. "Food compatible": Uses non-phthalic acid plasticizer for food, beverages, oils and fats. Pressure resistant hose for pressure feeding and vacuum (suction) made of soft vinyl chloride.
- Heat-Resistant Hose: Heat-Resistant Pressure Resistant Hose that can be safely ***d up to 70°C
- Oil-Resistant Hose: Oil-Resistant Hose that complies with the Food Sanitation Law and is safe and has a long life, since the hose does not harden even with fatty foods.
- "Shape Retaining": Hard steel wire coil reinforced structure, resistant to breaking and collapsing of hose, suitable for vacuum (suction) transport.
- "Various sizes": Pressure resistant hose for pressure feeding and suction (inner diameter 25~100 mm) with various sizes.
- "Legal Compliance": Food Sanitation Law Compliance (the Ministry of Health, Labour and Welfare Notification No. 196), FDA Compliance
- "Standard Compliance": RoHS2 Compliance (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 100 x 118
- Pressure (Mpa): -0.1 to 0.2 (50 °C), -0.1 to 0.1 (70 °C)
- Operating temperature range: -5 to 70 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcement/Hard Steel Wire
- Minimum b***ing radius: 410 mm
