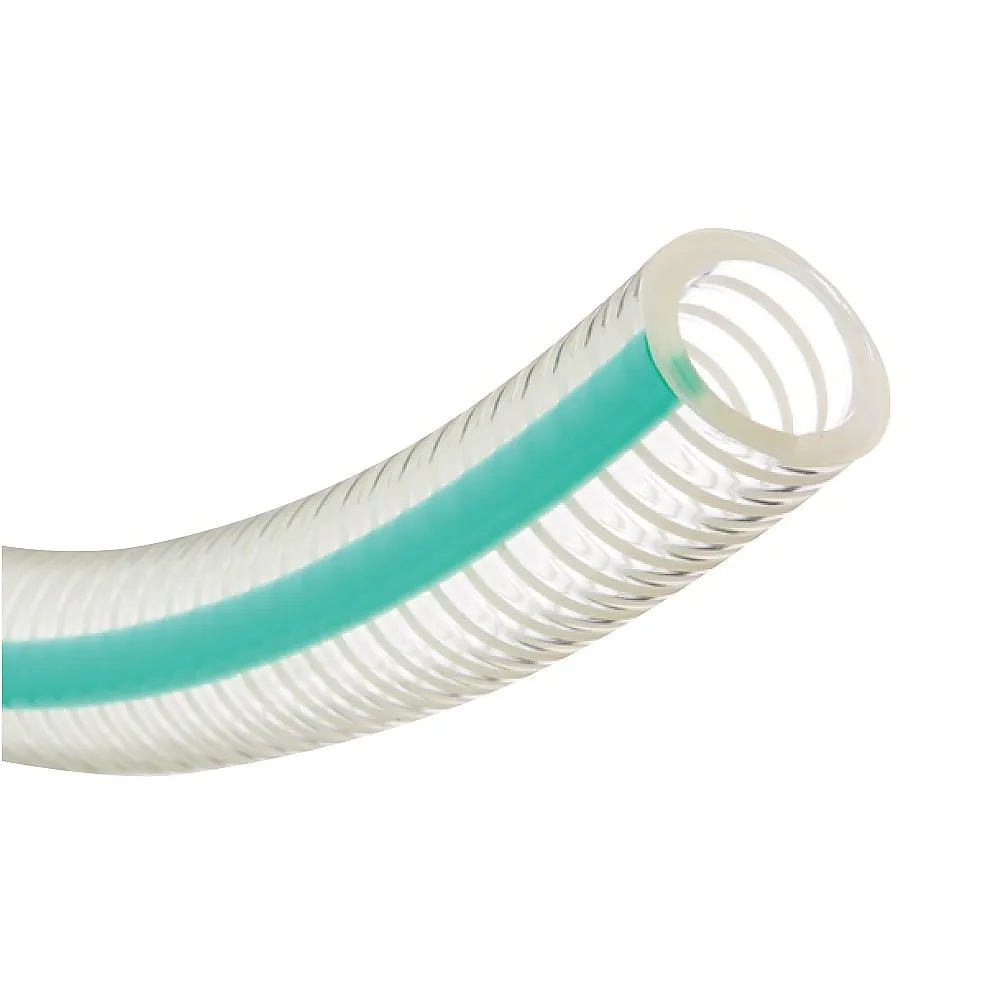

65-0854-76 Toyo Ring F Hose for transport of various foods, drinking water, etc. TGF-25-1
Product Description
Product Model: 65-0854-76Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0854-76
Product Brand: TOYOX CO., LTD.
Features
- "Main application": For transport and suction of food, beverages, oils and fats, etc. "Food compatible": Uses non-phthalic acid plasticizer for food, beverages, oils and fats. Pressure resistant hose for pressure feeding and vacuum (suction) made of soft vinyl chloride.
- Heat-Resistant Hose: Heat-Resistant Pressure Resistant Hose that can be safely ***d up to 70°C
- Oil-Resistant Hose: Oil-Resistant Hose that complies with the Food Sanitation Law and is safe and has a long life, since the hose does not harden even with fatty foods.
- Hygienic: The reinforcing material inside the hose is not metal, but resin coil reinforcement, so there is no fear of rust, and it is a pressure resistant hose for suction and pressure feeding that is easy to cut.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196), FDA Compliance: Compliance with RoHS2 (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 25.4 x 33.4
- Pressure (Mpa): -0.1 to 0.4 (50 °C), -0.1 to 0.3 (70 °C)
- Operating temperature range: -5 to 70 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Special PET Plastic
- Minimum b***ing radius: 100 mm
