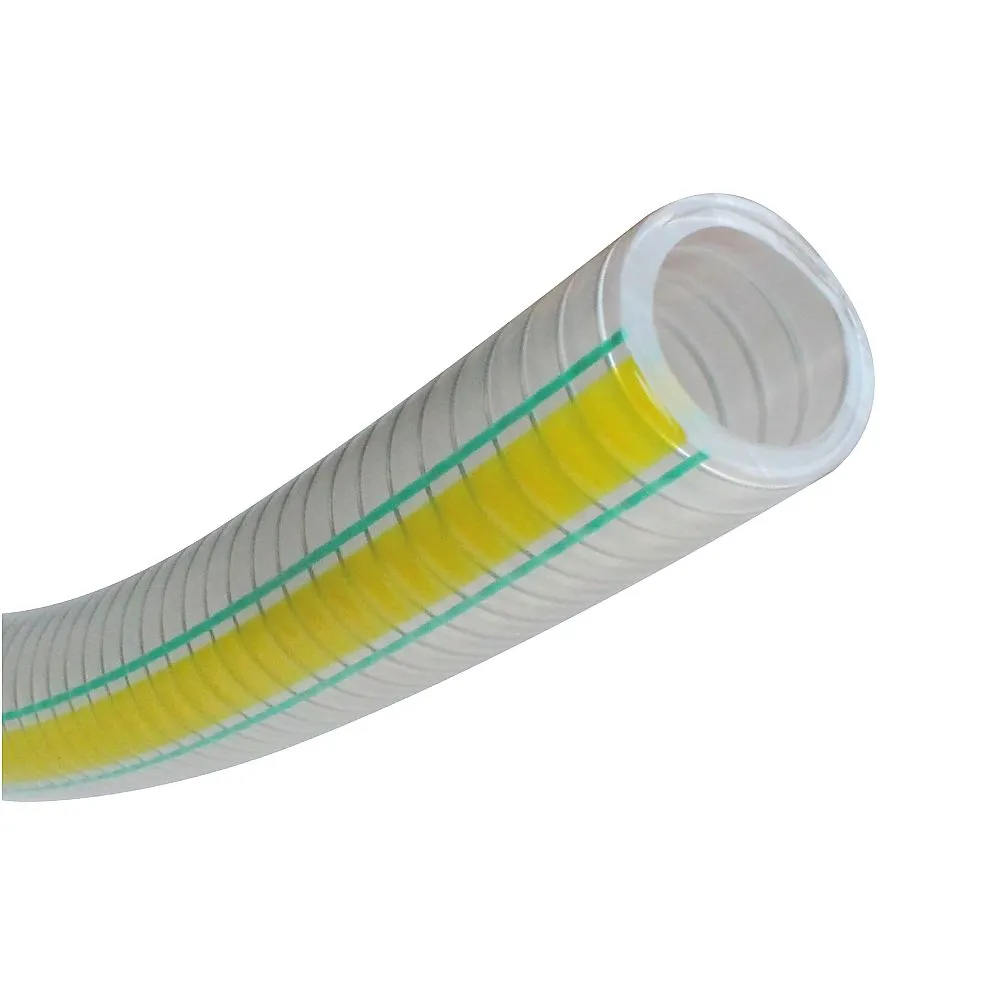

65-0853-77 Ecolon S Hose for Transporting Various Foods, Drugs, Solvents, Oils, etc. ECS-50-1
Product Description
Product Model: 65-0853-77Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0853-77
Product Brand: TOYOX CO., LTD.
Features
- "Main ***": For transporting food, beverages, oils and fats, chemicals, cosmetics, etc. "Non-PVC": Made of inner tube polyolefin resin, this pressure resistant hose has chemical resistance, low elution, low odor and can be ***d for transporting chemicals, chemicals, pure water, cosmetics and food.
- "Shape retaining": Contains metal reinforcing coil, resists breaking and collapsing of hose, and can be ***d as suction hose.
- Compliance with Law: Compliance with Food Sanitation Law (the Ministry of Health, Labour and Welfare Notification No. 196)
- Compliance with Standards: Compliance with RoHS2 (as of October 2021)
- * This hose is for indoor *** only.
Spec
- Inner diameter x Outer diameter (mm): 50 x 62
- Pressure (Mpa): -0.1 to 0.2 (23 °C), -0.1 to 0.1 (60 °C)
- Operating temperature range: -5 to 60 °C
- Length: 1 m
- Material: Body/Polyolefin Plastic + Styrene Plastic, Reinforcement/Hard Steel Wire
- Minimum b***ing radius: 520 mm
