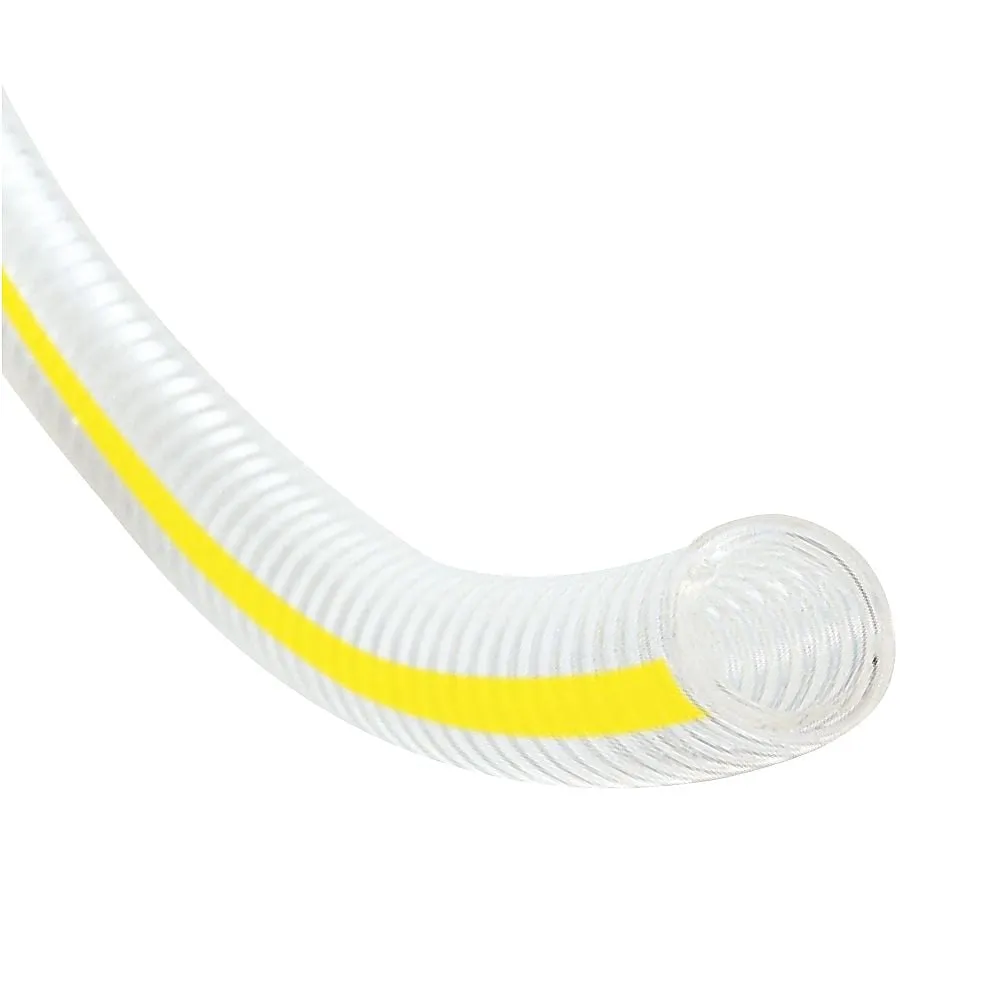

65-0852-76 Toyo Ring Hose for Factory Equipment Piping and Various Mechanical Piping TG-25-1
Product Description
Product Model: 65-0852-76Product Brand: TOYOX CO., LTD. […]
Contact Us
Product Details
Product Model: 65-0852-76
Product Brand: TOYOX CO., LTD.
Features
- "Main Applications": Plant Equipment/Mechanical Piping Pressure Feed/Suction
- "Multi-Purpose Resin Hose": Pressure resistant hose for pressure feed/vacuum (suction) made of soft vinyl chloride that can be ***d for water, oil, chemicals, air, etc.
- "Oil resistance": Oil resistant, oil resistant and hard to harden. "Shape retention": Special PET resin reinforced structure, resistant to breakage and collapse, and resilient. Since the reinforcing material in the hose is not metal but resin coil reinforcement, there is no fear of rust. Easy to cut with scissors, excellent workability, no need for separate disposal
- "Compliance with standards": RoHS2 compliant (as of October 2021)
Spec
- Inner diameter x Outer diameter (mm): 25.4 x 33.4
- Pressure (Mpa): -0.1 to 0.4
- Operating temperature range: -5 to 60 °C
- Length: 1 m
- Material: Body/Soft vinyl chloride, Reinforcing Material/Special PET Plastic
- Minimum b***ing radius: 100 mm
